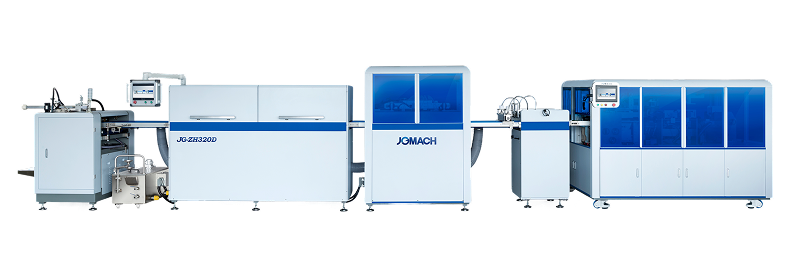

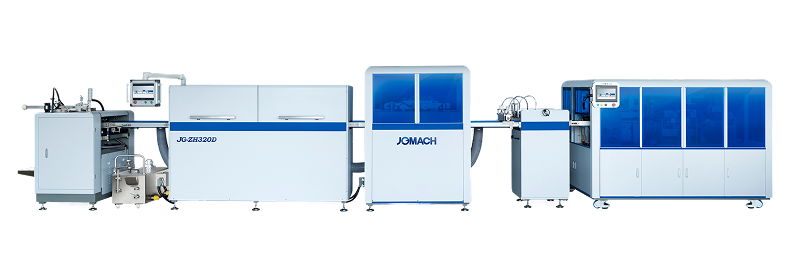

JG-ZH320/340D Automatic Tall Wine Box Forming Machine

The JG-ZH320/340D is a standalone automatic forming machine for tall rigid wine, baijiu， liquor and spirits boxes. It completes paper feeding, gluing, drying, board positioning, correction, folding and forming and bubble press in one connected process. The adjustable mold supports different box sizes within the confirmed range, while the gluing system can be configured for white glue or hot-melt glue.

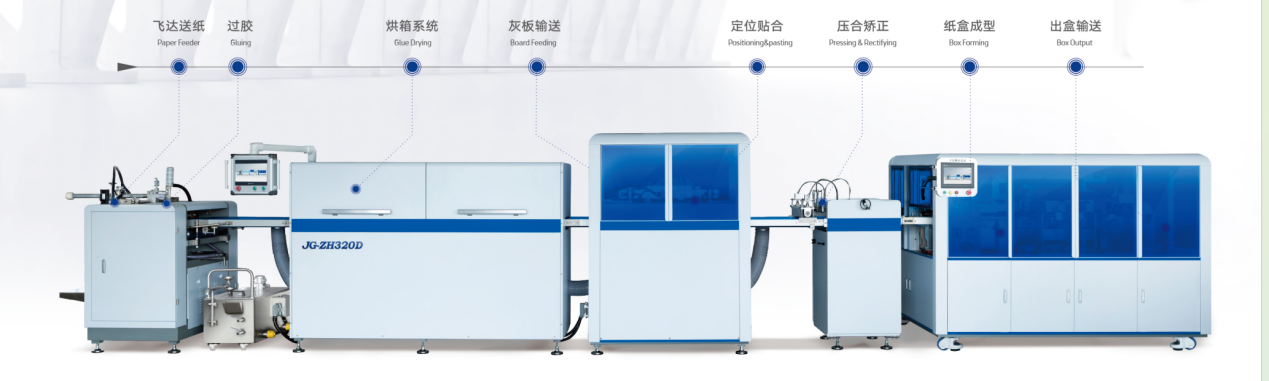

Production Workflow

1. Feed and glue the covering paper.

2. Dry the glued sheet through the insulated unit.

3. Position and correct the board and paper using the photoelectric system.

4. Fold the material and form the tall wine-box structure.

5. Pass bubble press unit.

Key Features and Buyer Benefits

Tall wine-box range

The machine supports heights up to 320 or 340 mm, depending on the selected configuration.

White and hot-melt glue

The published page states that both adhesive systems are supported.

Photoelectric correction

The positioning system controls board and paper alignment during forming.

Adjustable mold

The mold is intended for size adjustment within the working range.

Multiple structural formats

The page lists non-connected, single-connected and double-connected wine-box types.

Suitable Applications

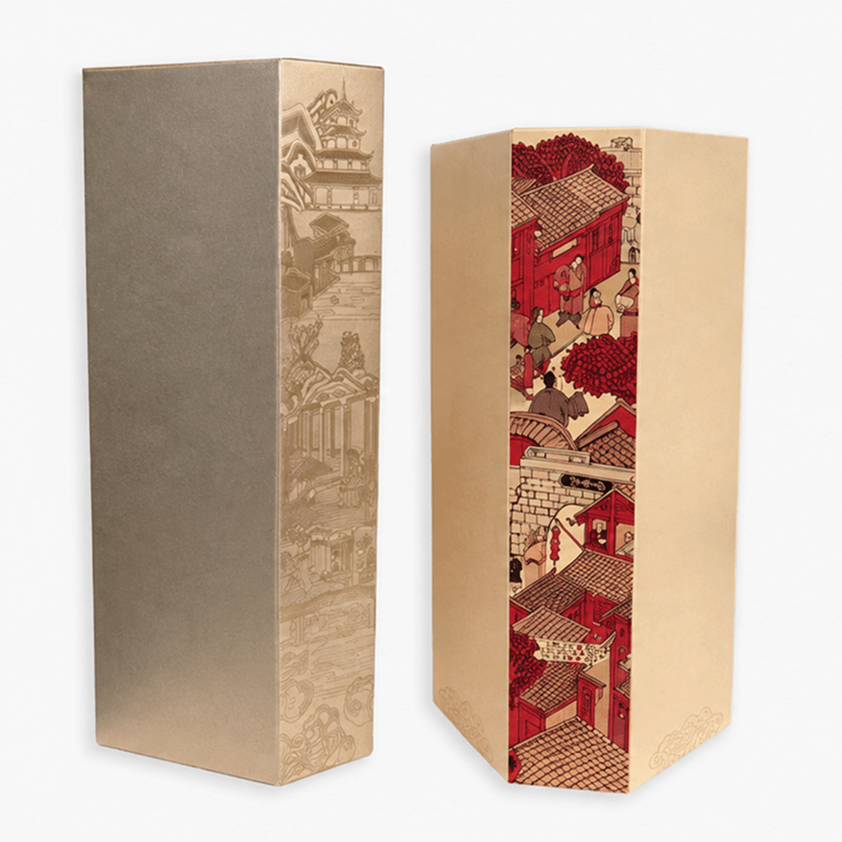

· Baijiu boxes

· Wine and spirits packaging

· Tall non-connected rigid boxes

· Single-connected wine boxes

· Double-connected wine boxes

Feeder Paper Loading:

Servo driven mechanical structure ensures the stability and speed of paper feeding. The feeder adopts rear suction, which is compatible with both flat paper and windowed paper. The paper loading is about 680mm high, reducing the number of stops during machine operation.

Positioning Unit:

Equipped with the original photoelectric deviation correction three-point positioning system, combined with the self-developed manipulator motion grabbing and deviation correction structure, with a positioning accuracy of ±0.15mm.

Box Wrapping Part:

The adjustment box mold can be used for different box sizes which is convenient and fast. The box forming mechanism is upgraded to servo drive, which is faster, more stable and easier to adjust.

Bubble Press Dual-station grip:

Grasping is more stable, adopt five side pressing and pushing form for box-out, so that the bubble pressing time is longer and the overall speed is faster.

Technical Specifications

Specification	JG-ZH320/340D
Minimum box size	100 x 100 x 160 mm
Maximum box size	160 x 160 x 320/340 mm
Paper weight	120-275 gsm
Board thickness	1.2-3.0 mm
Positioning accuracy	+/-0.15 mm
Production speed	18-25 pcs/min
Motor power	23 kW
Heating power	9 kW
Machine dimensions	10500 x 2500 x 1700 mm
Machine weight	6000 kg

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

How to Evaluate This Model

· Confirm the required 320 or 340 mm maximum-height configuration.

· Define the box connection structure and all downstream operations not included in the standalone former.

· Provide paper, board, glue and finished sample for a forming test.

· Check gold-line alignment, wall squareness, seams, wrapped edges and surface quality.

Frequently Asked Questions

Is this a complete wine-box production line?

It is positioned as a standalone automatic wine-box forming machine. The subsequent processes can be gradually increased as required

What is the maximum box height?

The page lists configurations for 320 mm or 340 mm maximum height.

Which glue systems are supported?

The current content identifies white glue and hot-melt glue.

What is the rated output?

The published speed is 18-25 pieces per minute.

Can it form different connection structures?

The page states that non-connected, single-connected and double-connected structures can be produced within the working range.
