JG-H420 Automatic Ribbon & Lining machine

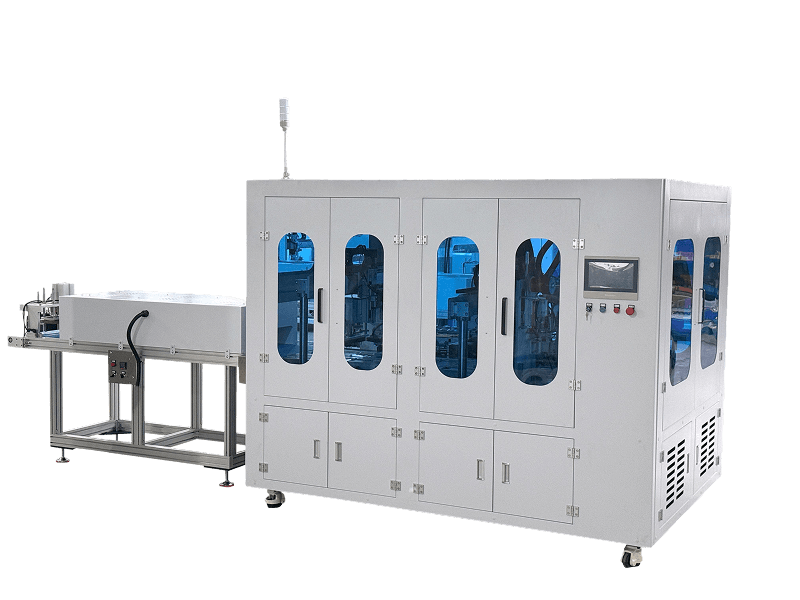

The JG-H420 is a specialized automatic machine for assembling ribbon, plastic vacuum-formed inserts and paper lining in wine-box lids. It combines lid feeding, ribbon pasting, hot-glue application, plastic-piece feeding and placement, lining positioning and pasting, bubble pressing, hot-air conveying and re-pressing.

Production Workflow

1. Feed and convey the prepared wine-box lid.

2. Apply and paste the ribbon at the specified position.

3. Feed, pick and attach the plastic vacuum-formed insert.

4. Take out, position, glue and paste the paper lining.

5. Complete bubble pressing, hot-air conveying and final re-pressing.

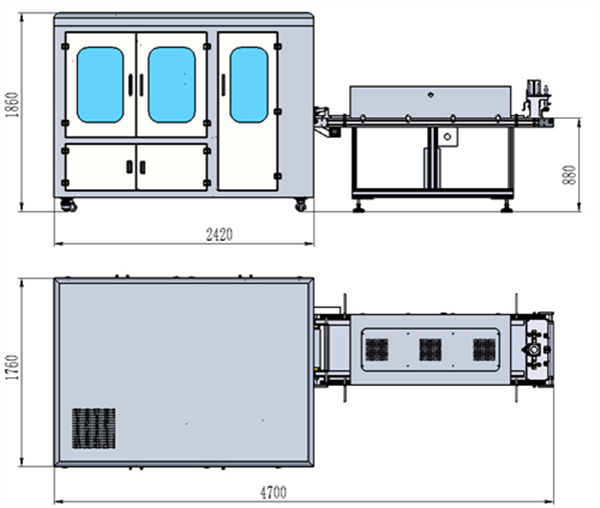

Schematic diagram:

Structure layout:

It is mainly composed of air control system, cover feeding device, cover conveying device, ribbon pasting device, hot glue device, plastic piece feeding device, plastic piece conveying device, plastic piece picking & sticking device, lining take out device, lining positioning device,glue roller device, lining pasting device, bubble press device, hot air conveying device, and re-pressing device.

Key Features and Buyer Benefits

Three-component lid assembly

The machine combines ribbon, plastic insert and lining-paper operations.

Integrated touch-screen control

The controller and touch screen are used to set and adjust operating data.

Adjustable product range

The equipment can be adjusted for products within the stated size range.

Connection to upstream equipment

The current page states that the machine can connect with the preceding process.

Detailed subsystem layout

The page should retain a labeled layout showing every feeding, pasting, pressing and conveying unit.

Suitable Applications

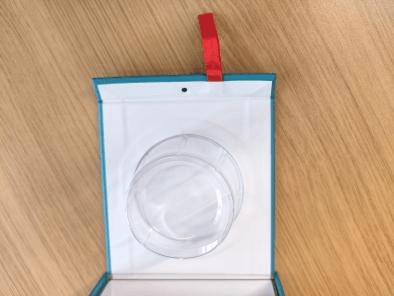

· Wine-box lids with pull ribbons

· Liquor-box covers with vacuum-formed inserts

· Premium packaging lids with paper lining

· Rigid box lid accessory assembly

· Inline finishing after upstream lid preparation
