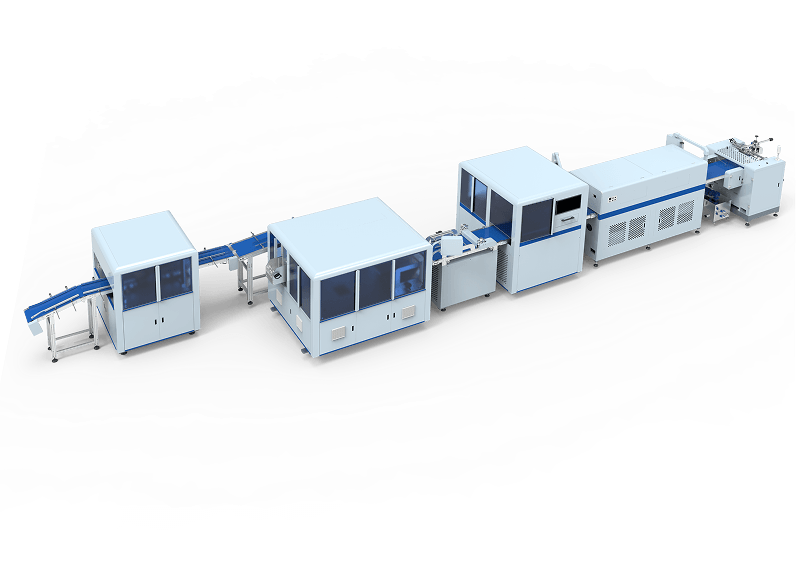

JG-CT200A Fully Automatic Drawer Box Forming Machine

The JG-CT200A is an automatic forming machine for drawer-box components used in cosmetics, jewelry, electronics, gifts and other premium packaging. It combines paper feeding, gluing, drying, vision-guided positioning, correction, , box forming and bubble pressing. Its maximum published product height is 200 mm.

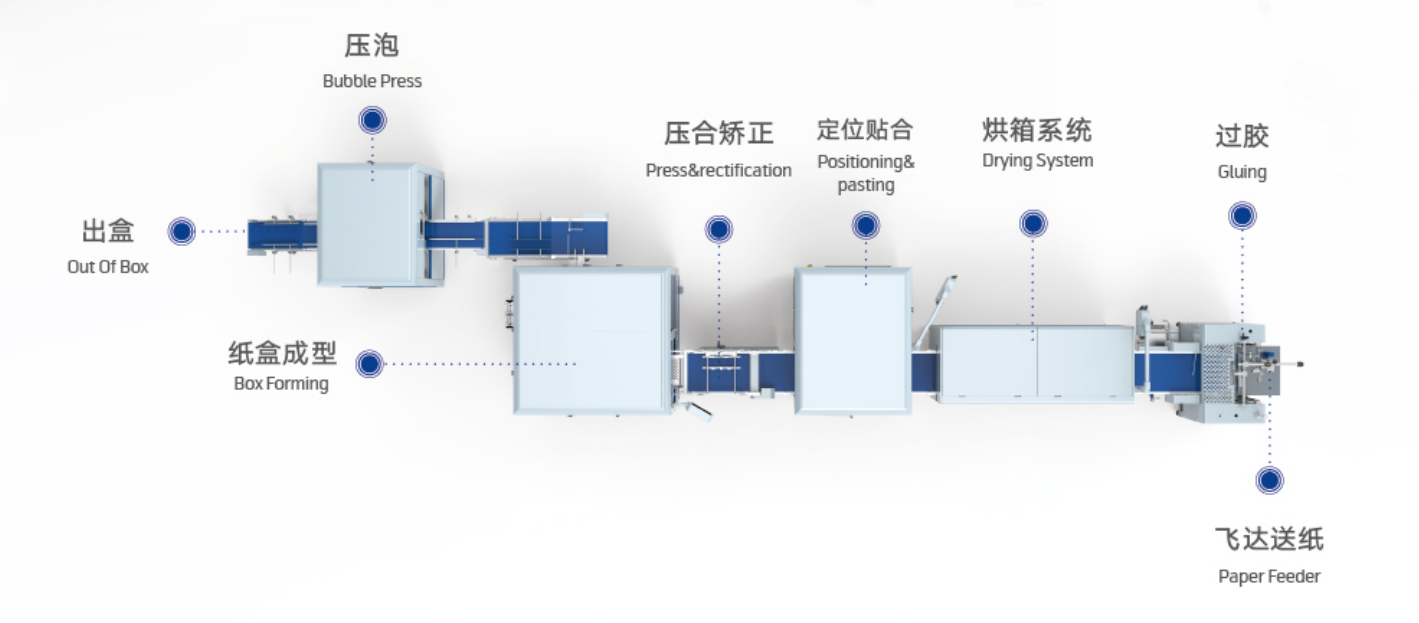

Production Workflow

1. Feed and glue the covering paper.

2. Stabilize the adhesive through the drying section.

3. Use the 20-megapixel vision system and robot arm for positioning and handling.

4. Fold and form the drawer-box component with the selected mold.

5. Bubble-press the formed product and discharge it .

Key Features and Buyer Benefits

Drawer-box-specific forming

The machine is designed for rigid drawer-box components rather than general folding cartons.

Vision and robot positioning

The 20-megapixel camera system works with robotic handling.

Cold and hot glue

The gluing system is described as compatible with both adhesive types.

Servo control and fault diagnosis

Servo motion and sensors support operation and troubleshooting.

Up to 200 mm height

The CT200A addresses drawer-box components within a 200 mm maximum-height range.

Suitable Applications

· Cosmetic drawer boxes

· Perfume boxes

· Jewelry packaging

· Electronic-product boxes

· Premium gift boxes

· Food and specialty packaging with a rigid tray and sleeve

Feeder Part:

Servo-driven mechanical structure to ensure paper feeding stability and paper feeding speed.

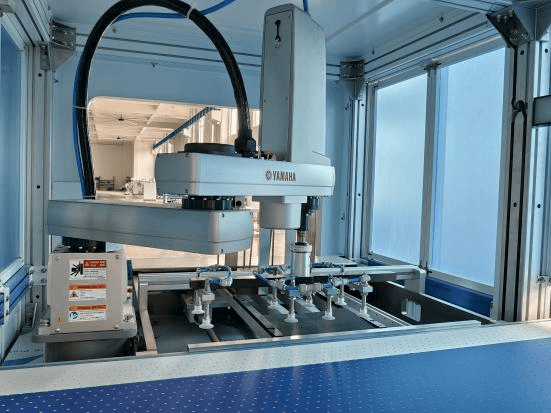

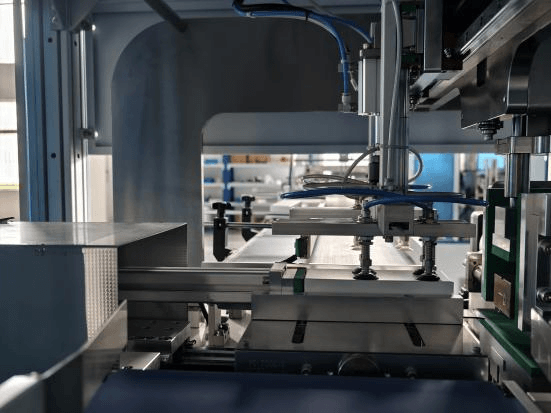

Positioning Unit:

Adopt 20 million pixel visual positioning and gantry manipulator grasping system, to ensure ±0.15mm positioning accuracy and 18-25 pcs/min speed.

Correction Part:

Before the paper enters the forming part, adjust the position to ensure a firmer wrapping.

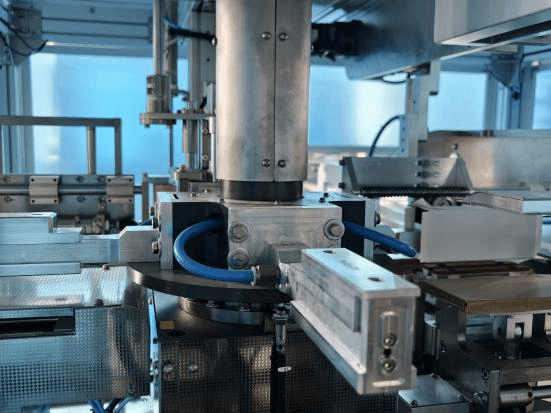

Servo Wrapping Part:

The box forming mechanism is upgraded to servo drive, which is faster, more stable and easier to adjust.

Bubble Press Part:

Grasping is more stable, adopt five side pressing and pushing form for box-out, so that the bubble pressing time is longer and the overall speed is faster.

Technical Specifications

Specification	JG-CT200A
Maximum box size	160 x 140 x 200 mm
Minimum box size	60 x 25 x 80 mm
Board thickness	1.0-3.0 mm
Paper weight	120-275 g/m2
Production speed	18-25 pcs/min
Positioning accuracy	+/-0.15 mm
Total power	27 kW
Heating power	9 kW
Machine dimensions	13300 x 3300 x 2000 mm
Machine weight	6.2 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

How to Evaluate This Model

· Confirm that the required height is within 200 mm; use CT260 evaluation for deeper products.

· Specify paper finish, board thickness and adhesive.

· Inspect box squareness, wrapped edges, surface bubbles and sleeve clearance.

Frequently Asked Questions

What is the maximum product size?

The supplied catalog lists 160 x 140 x 200 mm.

What is the minimum product size?

The catalog lists 60 x 25 x 80 mm.

Which positioning system is described?

The machine uses a 20-megapixel vision system combined with robot handling.

How does it differ from CT260?

The CT260 supports a taller maximum product height and a different size range ,and with adjustable mold.

What should be checked on a drawer-box sample?

Check tray dimensions, sleeve fit, wall squareness, surface bubbles, wrapped edges and opening resistance.
