JG-FM700 Fully Automatic Case Making Machine

The JG-FM700 is a smaller-format automatic case making machine for hardcover and rigid packaging cases. It combines paper feeding, gluing, photoelectric board positioning, correction, wrapping and collection. Compared with the FM780 and FM1050 platforms, the FM700 serves a narrower cover-width range and occupies less floor space.

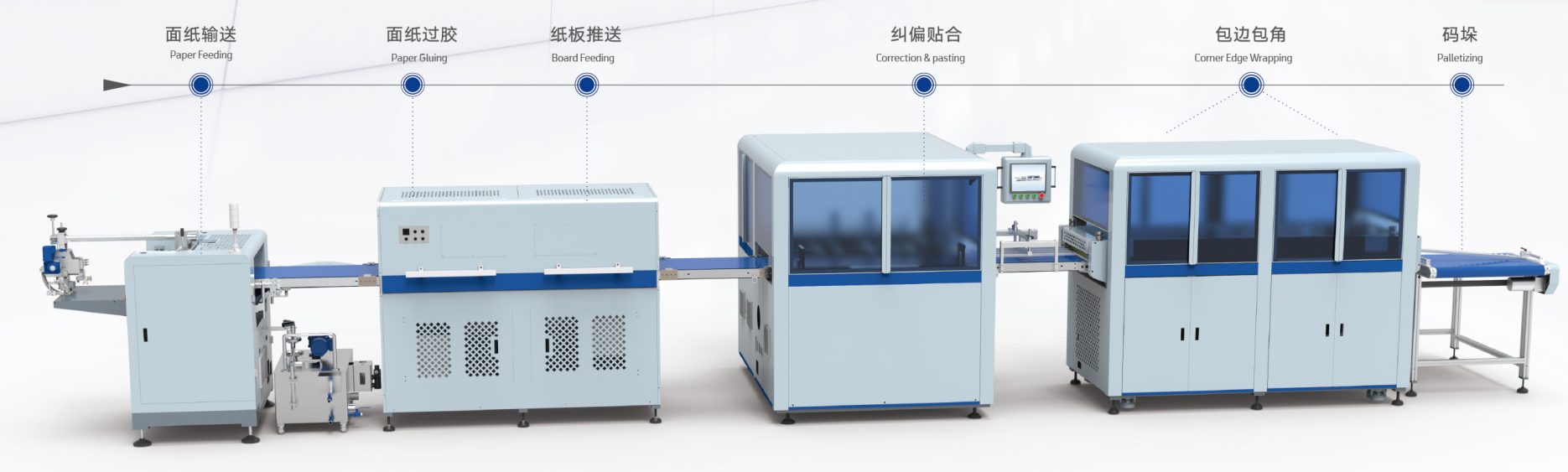

Production Workflow

1. Feed paper from 120 x 260 mm up to 420 x 740 mm.

2. Apply glue and position one to five board pieces using photoelectric correction.

3. Fold the paper around the arranged boards.

4. Complete edge and corner wrapping.

5. Collect the finished cases.

Key Features and Buyer Benefits

Compact case-making platform

The published machine length is 8300 mm, shorter than the FM780 and FM1050 models.

Photoelectric positioning

The correction system positions boards on glued covering paper.

One-to-five-board capability

Different cover layouts can be evaluated within the stated size range.

Application-focused size range

The page should clearly state the smaller cover-width range so unsuitable enquiries are filtered early.

Suitable Applications

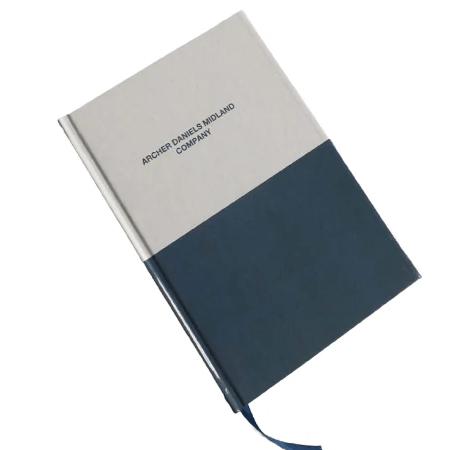

· Hardcover books

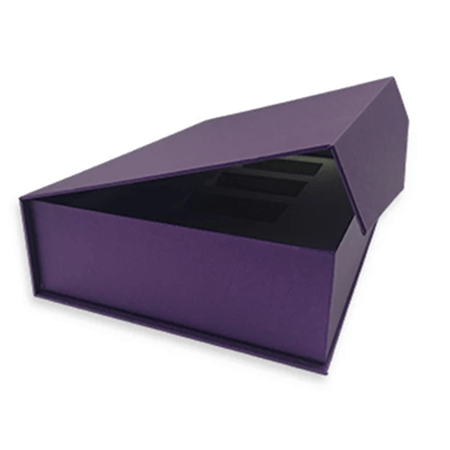

· Narrow book-style box covers

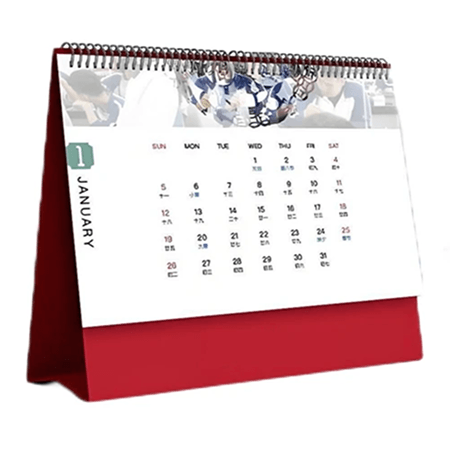

· Calendars

· Cosmetic and electronic-product packaging cases

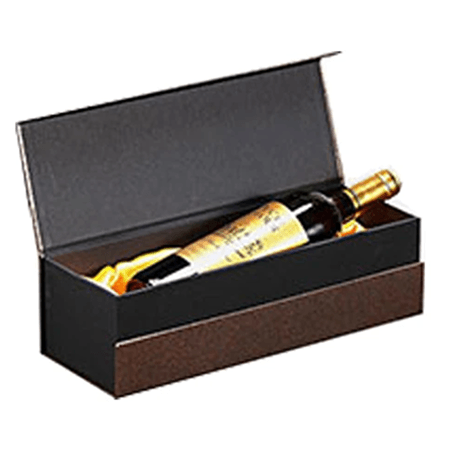

· Wine and cigarette packaging cases within the working range

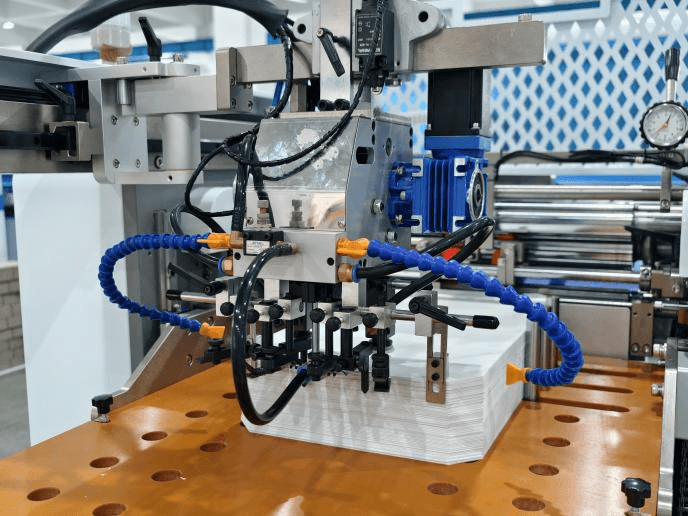

Feeder Part:

Servo-driven mechanical structure to ensure paper feeding stability and paper feeding speed; Equipped with a double-sheet detection function.

Paper loading with 500mm height, reducing the number of downtimes during machine operation.

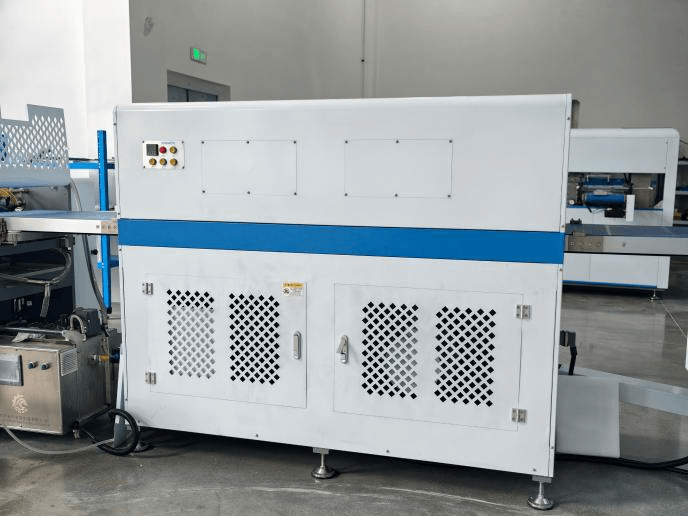

Glue System:

The hot glue barrel supports intelligent heating and stirring as well as automatic glue concentration adjustment; for cold glue application, an optional intelligent drying unit is available, featuring constant temperature control at 60-80℃ to meet the requirements of different gluing processes.

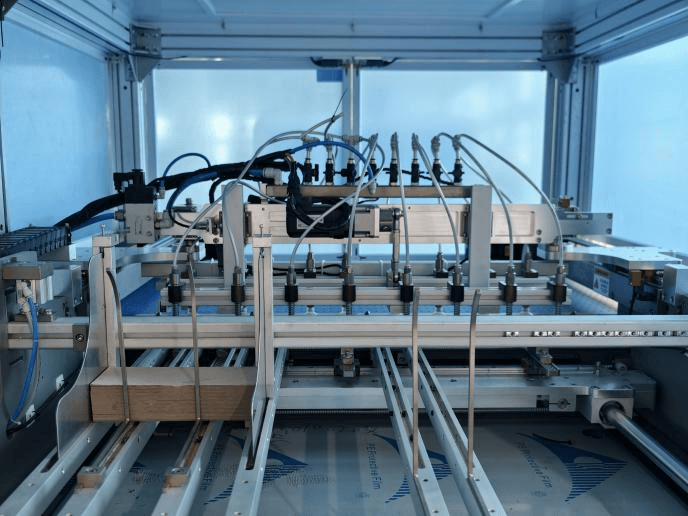

Positioning Part:

Advanced laser photoelectric identification system, to ensure ±0.10mm positioning accuracy and 35pcs/min speed.

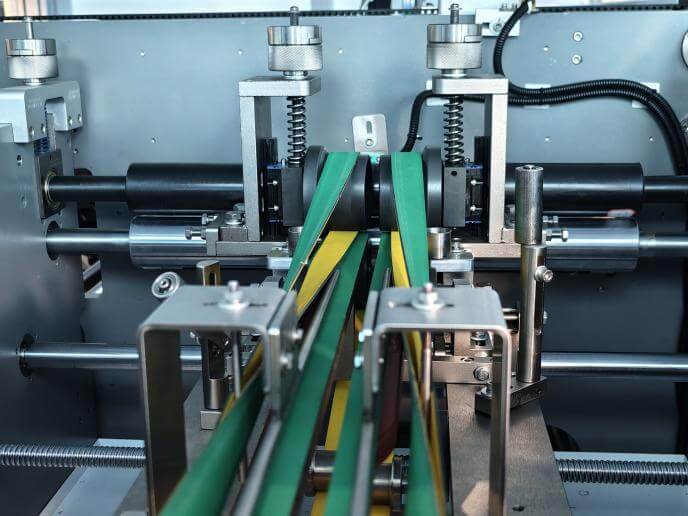

Wrapping Part:

Twisted belt edge wrapping eliminates empty edges and bubbles on both long and short sides, resulting in more aesthetically pleasing corner and edge finishes.

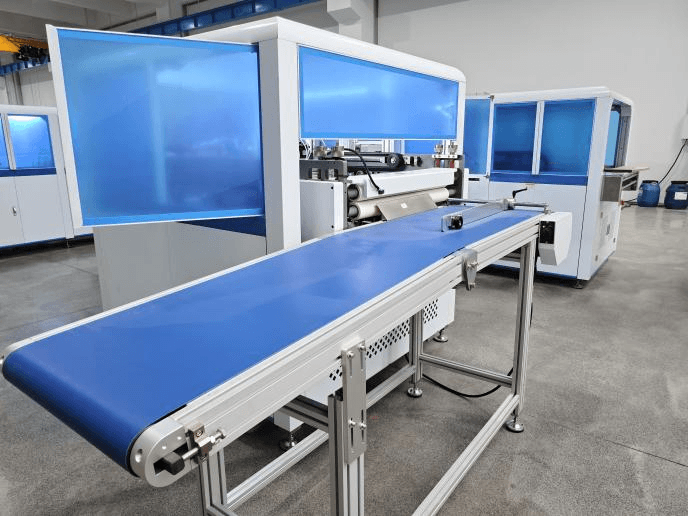

Collection Part:

The inclined collector enables convenient finished products collection.

Technical Specifications

Specification	JG-FM700
Maximum paper size	420 x 740 mm
Minimum paper size	120 x 260 mm
Maximum cover size	390 x 700 mm
Minimum cover size	85 x 220 mm
Board thickness	1.2-3.0 mm
Board quantity	1-5 pcs
Paper weight	157-275 g/m2
Production speed	Up to 35 pcs/min
Positioning accuracy	+/-0.15 mm
Air requirement	0.5 MPa; flow up to 0.3 m3/min
Total power	21.0 kW
Machine dimensions	8300 x 2100 x 1800 mm
Machine weight	4.6 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

How to Evaluate This Model

· Confirm that the product width fits the 390 mm maximum finished-cover width.

· Check the 157-275 g/m2 paper range against every cover stock.

· Compare floor-space requirements with FM780 and FM1050 alternatives.

· Submit the complete board layout and finished case sample.

Frequently Asked Questions

What is the maximum cover size?

The published maximum finished cover is 390 x 700 mm.

What is the minimum cover size?

The published minimum is 85 x 220 mm.

Which positioning method is used?

The FM700 uses photoelectric correction and positioning.

What is the published accuracy?

The page lists positioning accuracy of +/-0.15 mm.

Why choose the FM700?

It is relevant when the product fits its narrower format range and the factory prefers a smaller case-making platform with lower cost.
