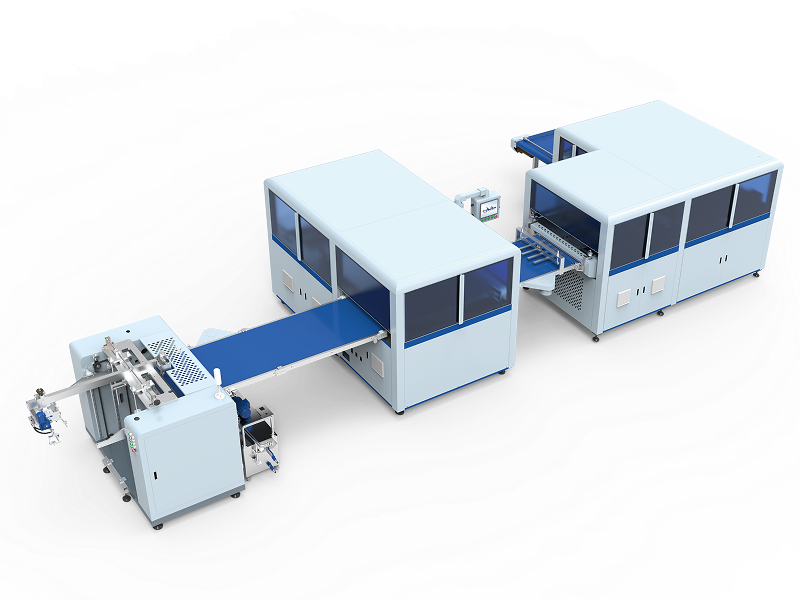

JG-FM1050 Large Format Automatic Case Making Machine

The JG-FM1050 is a large-format automatic case making machine for paper-covered board products with finished cover sizes up to 1050 x 600 mm. It automates paper feeding, gluing, board positioning, correction, wrapping and collection. The machine uses photoelectric correction, servo-assisted size settings and a cam-driven mechanical wrapping structure.

Production Workflow

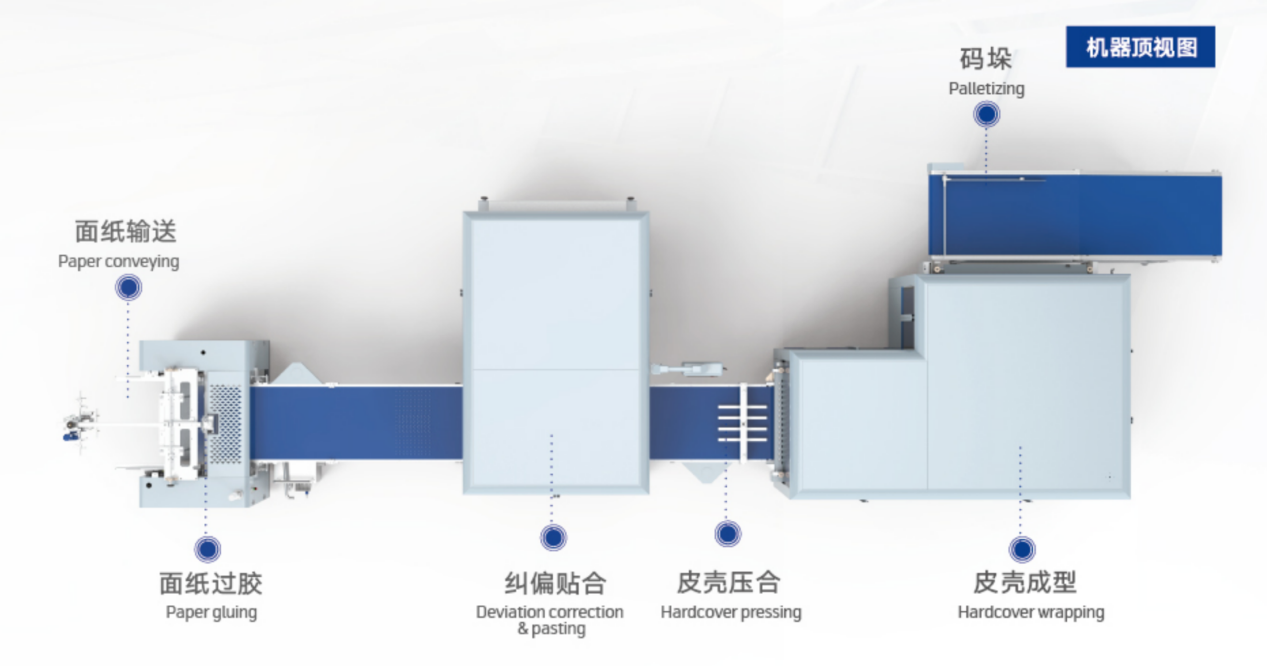

1. Feed and glue covering paper up to the published 1090 x 640 mm maximum.

2. Position one to five board pieces on the glued paper using photoelectric correction.

3. Press the board and paper assembly.

4. Wrap the long edges by belt and short edges and form the corners mechanically.

5. Collect the finished large-format cases.

Key Features and Buyer Benefits

Large finished-cover range

The maximum finished cover is 1050 x 600 mm, making size capacity the primary reason to select this model.

One-to-five-board layouts

The technical table states support for one to five board pieces.

Photoelectric positioning

The positioning method supports paper and board correction during placement.

Servo-assisted size settings

Product size data can be entered through the control system for servo adjustment.

Mechanical edge wrapping

The cam-driven wrapping structure completes short sides edge and corner wrapping after positioning.

Suitable Applications

· Large book-style box covers

· Oversize hardcover books and albums

· Calendars and presentation folders

· Wine and cosmetic packaging cases

· Multi-board rigid packaging covers

How to Evaluate This Model

· Use this model when the finished cover exceeds the FM780 range.

· Submit the board count, board spacing and spine layout for every case format.

· Confirm paper curl, coating and adhesive behavior on large sheets.

· Reserve loading, unloading and service space beyond the published machine dimensions.

Feeder Part:

Servo-driven mechanical structure to ensure paper feeding stability and paper feeding speed; Equipped with a double-sheet detection function.

Paper loading with 500mm height, reducing the number of downtimes during machine operation.

Glue System:

The hot glue barrel supports intelligent heating and stirring as well as automatic glue concentration adjustment; for cold glue application, an optional intelligent drying unit is available, featuring constant temperature control at 60-80℃ to meet the requirements of different gluing processes.

Positioning Part:

Advanced laser photoelectric identification system, to ensure ±0.10mm positioning accuracy and 35pcs/min speed.

Wrapping Part:

The combination of horizontal mechanical type and vertical belt type packaging ensures that the packaging edges are firm and flat, and the packaging corners are nice.

Collection Part:

The inclined collector enables convenient finished products collection.

Technical Specifications

Specification	JG-FM1050
Maximum cover size	1050 x 600 mm
Minimum cover size	330 x 120 mm
Maximum paper size	1090 x 640 mm
Minimum paper size	370 x 120 mm
Board thickness	1.2-3.0 mm
Board quantity	1-5 pcs
Paper weight	120-300 g/m2
Production speed	Up to 35 pcs/min
Positioning accuracy	+/-0.10 mm
Air requirement	0.5 MPa; flow up to 0.3 m3/min
Total power / heating	21 kW / 9 kW
Machine dimensions	12000 x 3000 x 1850 mm
Machine weight	10.5 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

Frequently Asked Questions

What is the maximum finished-cover size?

The published maximum is 1050 x 600 mm.

How many board pieces can be positioned?

The technical table states one to five board pieces.

What is the positioning method?

The current product page describes photoelectric correction and positioning.

What is the rated speed?

The published rated speed is up to 35 pieces per minute, depending on product and operating conditions.

When should this model be chosen over an FM780?

Choose the FM1050 when the paper or finished-cover dimensions exceed the FM780 working range or the project requires a larger layout.
