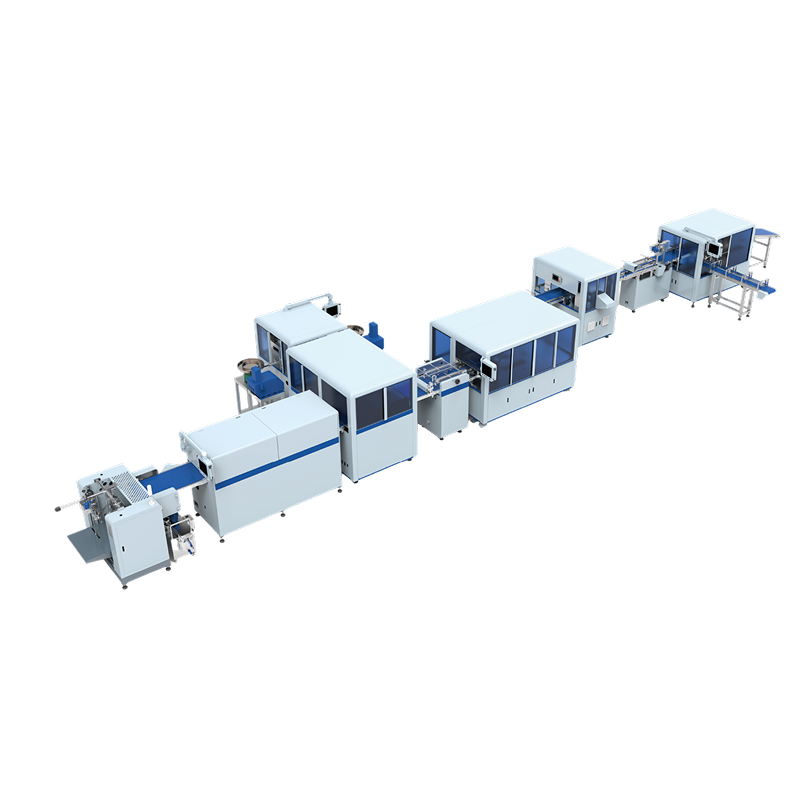

The JG-LDXS320 is a fully automatic wine-box production line developed for packaging structures that include an anti-counterfeit lock. It combines paper feeding, gluing, drying, security-block attachment, photoelectric positioning, correction, folding and forming. The page should be positioned around lock compatibility and placement accuracy rather than broad wine-box keywords alone.

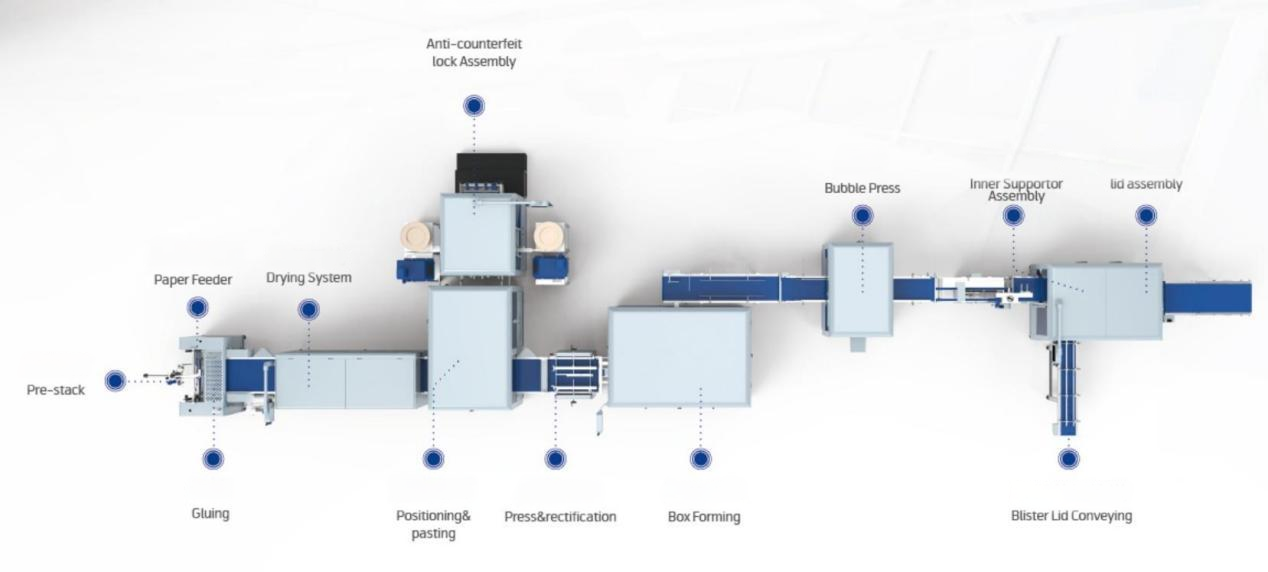

1. Feed and glue the covering paper.
2. Dry the glued paper through the insulated section.
3. Feed and attach the approved anti-counterfeit component at the defined position.
4. Use photoelectric correction to align the paper and board.
5. Fold and form the wine box using the adjustable mold.
The line is designed for wine boxes incorporating anti-counterfeit locks.
The current page identifies round and square security components as supported examples.
The gluing system is described as suitable for cold glue and hot glue .
The correction system supports paper-to-board alignment and gold-line splicing requirements.
The mold can be adjusted within the confirmed box-size range; exact setup time requires validation.
· Premium wine boxes with security closures
· Baijiu, liquor and spirits boxes with anti-counterfeit components
· Tall rigid boxes with round lock parts
· Tall rigid boxes with square lock parts
· Decorated wine boxes requiring controlled line alignment
· Provide physical lock samples and the approved attachment drawing.
· Confirm lock shape, dimensions, material and feeding orientation.
· Define the acceptable placement tolerance and pull/functional inspection method.
· Test the actual covering paper, board, glue and lock together.
