JG-CT260 Fully Automatic Drawer Box Forming Machine

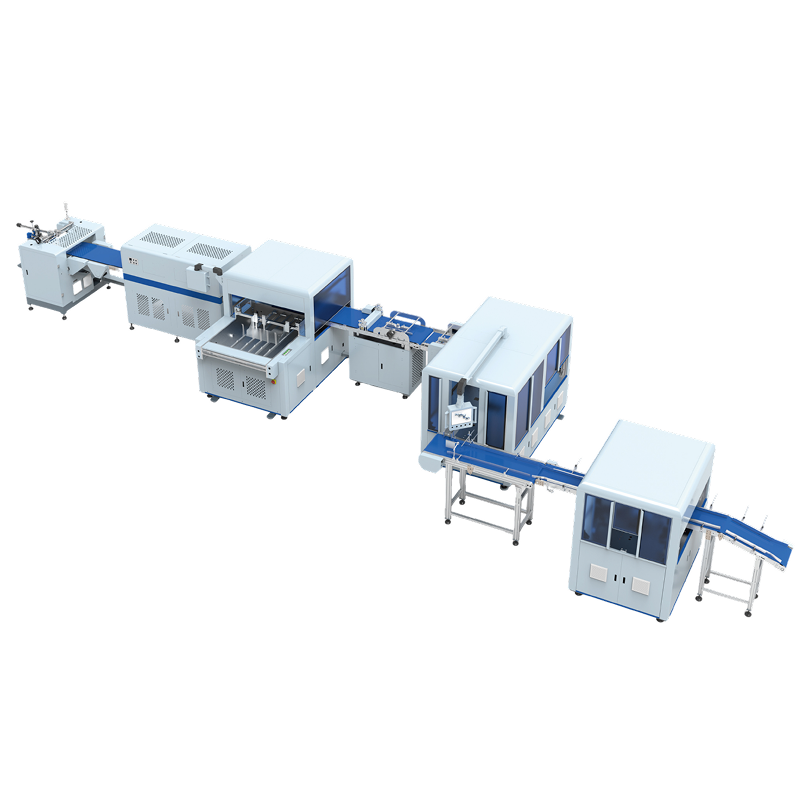

The JG-CT260 is a fully automatic forming machine for drawer-box . It integrates paper feeding, gluing, drying, vision-guided positioning, correction, box forming and bubble pressing. Its published maximum height is 260 mm and with adjustable mold., which should be the page's main differentiator from the CT200A platform.

Production Workflow

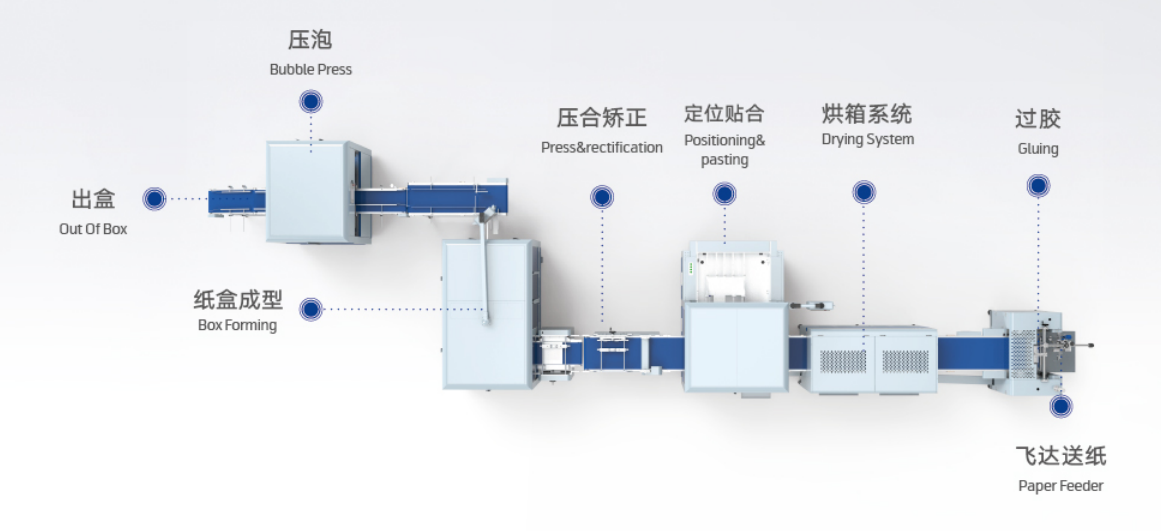

1. Feed and glue the covering paper, then pass it through the drying system.

2. Use the 20-megapixel vision system and robot arm to position the board

3. Fold and form the ~~deep~~ box with the adjustable mold.

4. Complete bubble pressing and transfer the finished product out of the line.

Key Features and Buyer Benefits

Up to 260 mm box height

The CT260 is designed for taller drawer-box formats than the CT200A.

Vision and robot positioning

A 20-megapixel vision system works with robot handling during positioning.

Cold and hot glue

The gluing system is described as suitable for both cold glue and hot glue.

Dual-station adjustable mold

The adjustable mold supports size changes within the confirmed range.

Servo control and diagnostics

Servo motion control and fault-diagnosis sensors support machine setup and operation.

Suitable Applications

· Tall drawer boxes

· Perfume boxes

· Sleeve boxes

· cosmetic packaging boxes

· Wine and spirits drawer-style packaging

· Jewelry and premium gift boxes

· Electronic-product boxes

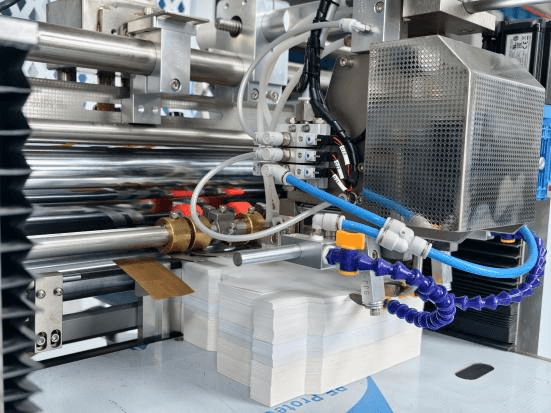

Feeder Part:

Servo-driven mechanical structure to ensure paper feeding stability and paper feeding speed.

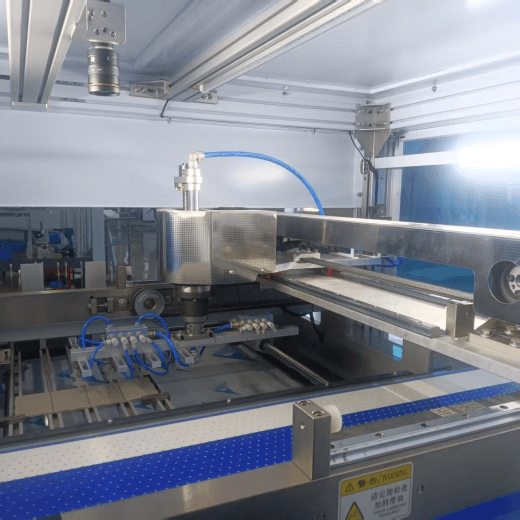

Positioning Unit:

Adopt 20 million pixel visual positioning and gantry manipulator grasping system, to ensure ±0.15mm positioning accuracy and 18-25 pcs/min speed.

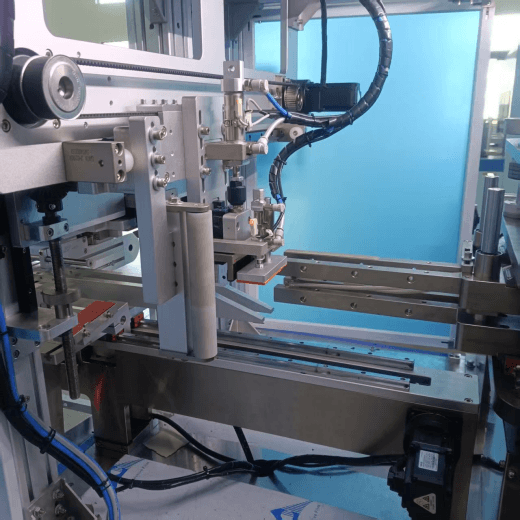

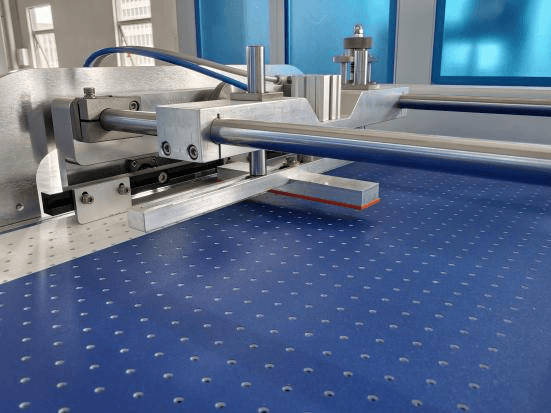

Correction Part:

Before the paper enters the forming part, adjust the position to ensure a firmer wrapping.

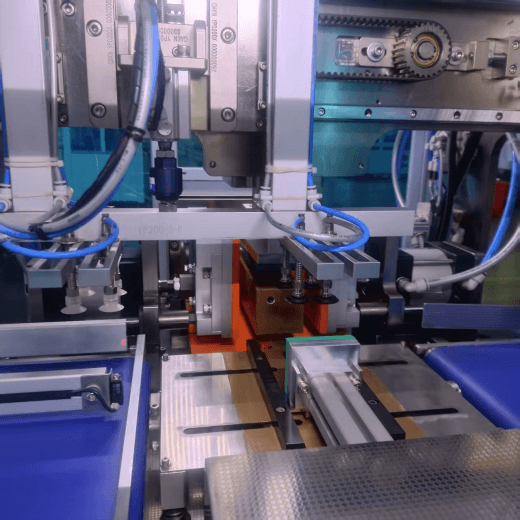

Servo Wrapping Part:

The box forming mechanism is upgraded to servo drive, which is faster, more stable and easier to adjust.

Bubble Press Part:

Grasping is more stable, adopt five side pressing and pushing form for box-out, so that the bubble pressing time is longer and the overall speed is faster.

Technical Specifications

Specification	JG-CT260
Maximum box size	180 x 100 x 260 mm
Minimum box size	60 x 20 x 60 mm
Board thickness	1.0-3.0 mm
Paper weight	120-275 g/m2
Production speed	18-22 pcs/min
Positioning accuracy	+/-0.10 mm
Total power	28 kW
Heating power	9 kW
Machine dimensions	13700 x 3600 x 1900 mm
Machine weight	7 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

How to Evaluate This Model

· Use the CT260 when the required box height exceeds the CT200A range but remains within 260 mm.

· Submit the inner tray and sleeve relationship for a drawer-box fit review.

· Provide actual paper, board and adhesive for forming and bubble-press tests.

· Check dimensional consistency, wall squareness, surface bubbles and drawer fit.

Frequently Asked Questions

What is the biggest advantage compared to traditional rigid boxes?

It enables 20-60% material savings with higher material utilization than traditional rigid boxes.

What is the maximum box height?

The supplied catalog lists a maximum box size of 180 x 100 x 260 mm.

What is the minimum box size?

The catalog lists 60 x 20 x 60 mm.

What positioning system is used?

The machine description states a 20-megapixel vision system combined with robot handling.

What is the rated speed?

The catalog states 18-22 pieces per minute.

Why must the current web table be replaced?

The current CT260 page displays CT200A and bubble-press data rather than CT260 specifications.
