JG-LDX320/340 Fully Automatic Wine Box Making Line

The JG-LDX320/340 is a fully automatic production line for tall rigid packaging used for baijiu, liquor ,wine and other spirits. It integrates paper feeding, gluing, drying, board positioning, correction, , box forming and downstream assembly operations. The line supports non-connected, single-connected and double-connected box structures within its confirmed size range, allowing buyers to evaluate one platform against several wine-box designs.

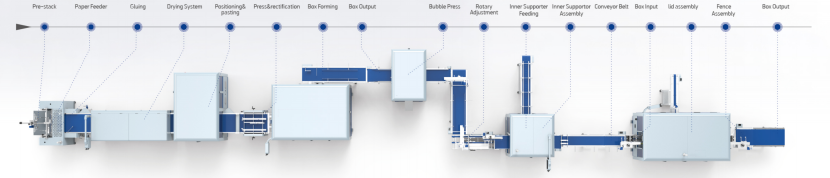

Production Workflow

1. Feed the covering paper and apply cold or hot glue.

2. Pass the glued paper through the insulated drying section.

3. Position the board and correct the paper-to-board relationship using photoelectric positioning.

4. Fold and form the wine-box body with an adjustable mold, then pass bubble press unit.

5. Complete the required aperture, base-fitment, lid and fence-strip assembly operations according to the selected box structure.

Key Features and Buyer Benefits

Multiple wine-box structures

The line can be configured for non-connected, single-connected and double-connected boxes within the published size range.

Cold- and hot-glue compatibility

The gluing system is described as suitable for both cold glue and hot glue.

Insulated drying section

Thermal insulation in the drying unit supports process stability when ambient temperature is low.

Photoelectric correction

The positioning system is intended to control paper and board alignment, including gold-line splicing requirements.

Adjustable forming mold

The adjustable mold supports size changes within the stated working range; the exact changeover procedure and time should be confirmed by test.

Suitable Applications

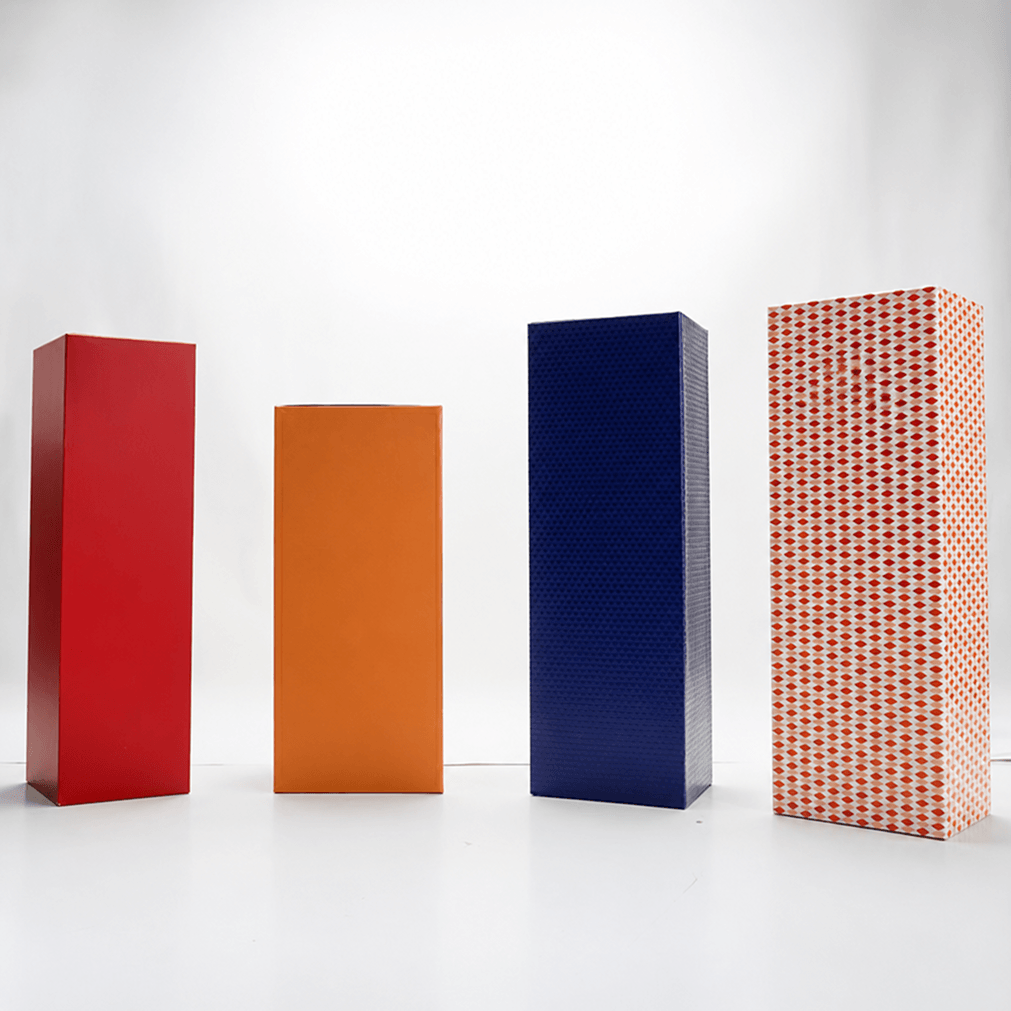

· Baijiu packaging boxes

· Wine, liquor and spirits presentation boxes

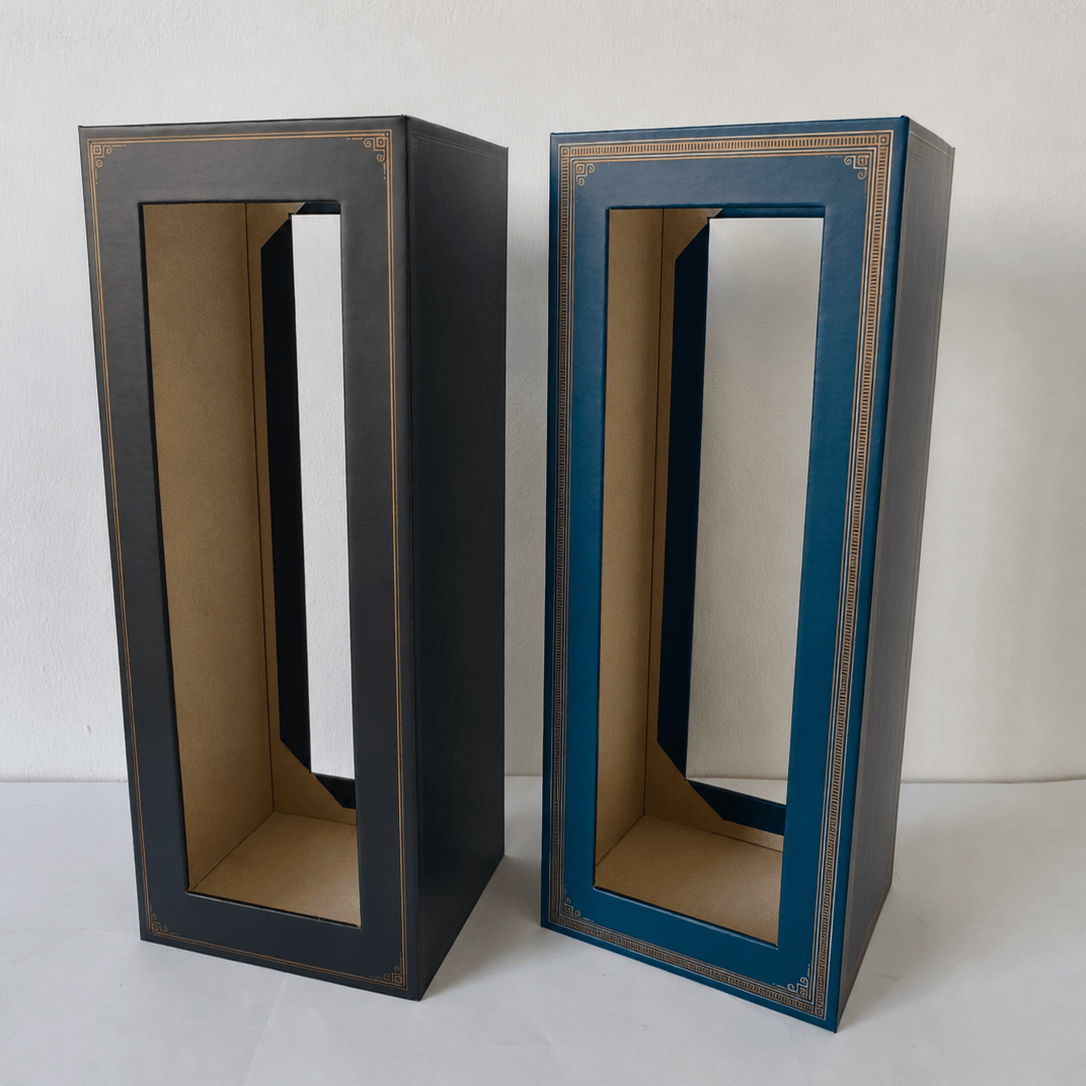

· Tall rigid boxes with non-connected structures

· Single-connected wine boxes

· Double-connected wine boxes

How to Evaluate This Model

· Identify whether the product is non-connected, single-connected or double-connected.

· Provide the lid, base fitment, aperture and fence-strip structure.

· Confirm paper, board, glue and decorative gold-line requirements.

· Reserve enough floor space for material loading, the full 24.2 m line and service access.

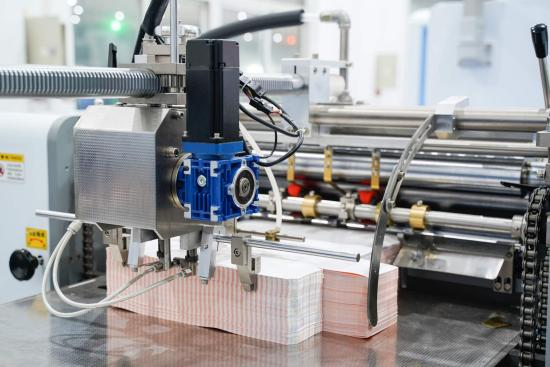

Feeder Paper Loading:

Servo driven mechanical structure ensures the stability and speed of paper feeding. The feeder adopts rear suction, which is compatible with both flat paper and windowed paper. The paper loading is about 680mm high, reducing the number of stops during machine operation.

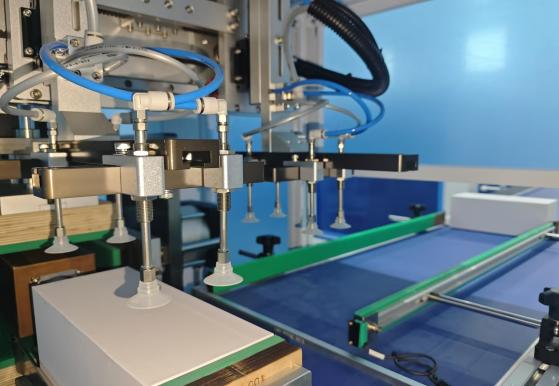

Positioning Unit:

Equipped with the original photoelectric deviation correction three-point positioning system, combined with the self-developed manipulator motion grabbing and deviation correction structure, with a positioning accuracy of ±0.15mm.

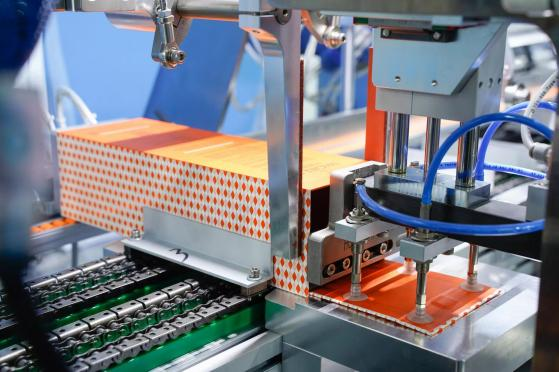

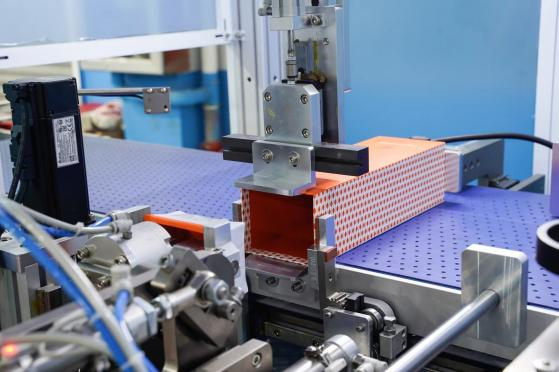

Box Wrapping Part:

The adjustment box mold can be used for different box sizes which is convenient and fast. The box forming mechanism is upgraded to servo drive, which is faster, more stable and easier to adjust.

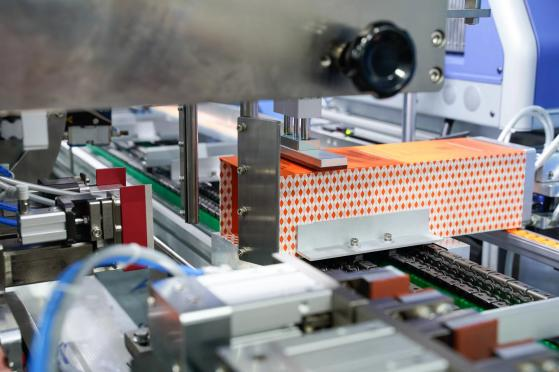

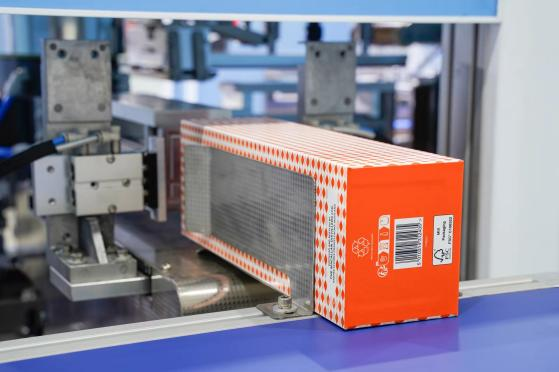

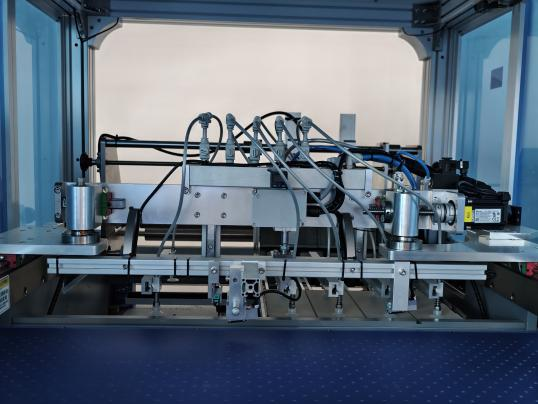

Bubble Press Dual-station grip:

Grasping is more stable, adopt five side pressing and pushing form for box-out, so that the bubble pressing time is longer and the overall speed is faster.

Base Fitment Assembly:

Spray-type cold glue is applied to the bottom. It is compatible with a wide range of base fitment materials including EPE foam, foam, plastic, etc., ensuring stronger material adhesion and broad material compatibility.

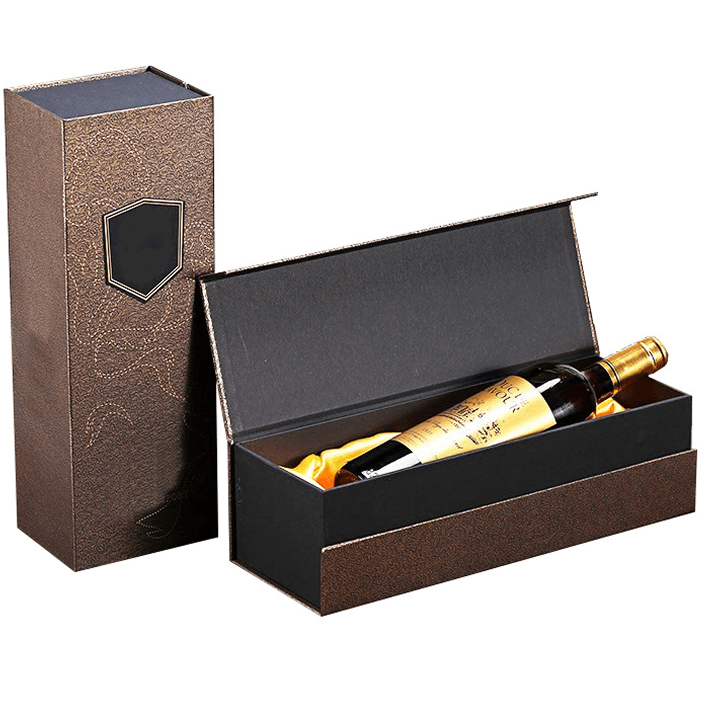

Box Lid Assembly:

Identify the box cover automatically and locate the corresponding position in the box for bonding quickly.

Box Fence Strip Assembly :

Photoelectric detect the position of the box, grab the strip intelligently, put into the corresponding position in the box accurately, complete the action of feeding fence strips smoothly.

Technical Specifications

Specification	JG-LDX320/340
Minimum box size	95 x 95 x 200 mm / 100 x 100 x 200 mm
Maximum box size	160 x 160 x 320 mm / 160 x 160 x 340 mm
Paper weight	120-275 gsm
Board thickness	1.2-3.0 mm
Positioning accuracy	+/-0.15 mm
Production speed	18-25 pcs/min
Machine power	55 kW
Machine dimensions	24200 x 3950 x 2000 mm
Machine weight	14 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

The fully automatic wine box machine is suitable for packaging wine boxes (including red wine, white liquor, and spirits such as whisky, brandy, vodka, rum, gin, and tequila). It can complete all packaging processes in one go, including box forming, applying the top lid, basement, side fence, and ribbons, and so on..

Frequently Asked Questions

Which wine-box structures can the line produce?

The published page lists non-connected, single-connected and double-connected structures within the stated size range.

What glue systems are supported?

The line is described as compatible with ~~both~~ cold glue ~~and hot glue~~.

What is the rated output?

The published production speed is 18-25 pieces per minute, depending on the box and operating conditions.

Can it add the lid and base fitment?

The line description includes base-fitment insertion and lid attachment among its available processes.

What should be submitted for line evaluation?

Provide the complete box sample, unfolded paper, board components, fitments, lid structure, fence strip and target output.
