JG-ZH200D Wine Box Base and Book-Style Inner Box Forming Machine

The JG-ZH200D is an automatic forming machine for shallow wine-box bases and inner boxes used in book-style rigid packaging. Its published product range is 95 x 95 x 30 mm to 160 x 140 x 80 mm. The process flow includes paper feeding, gluing, drying, positioning and pasting, pressing and correction, box forming, bubble pressing and discharge.

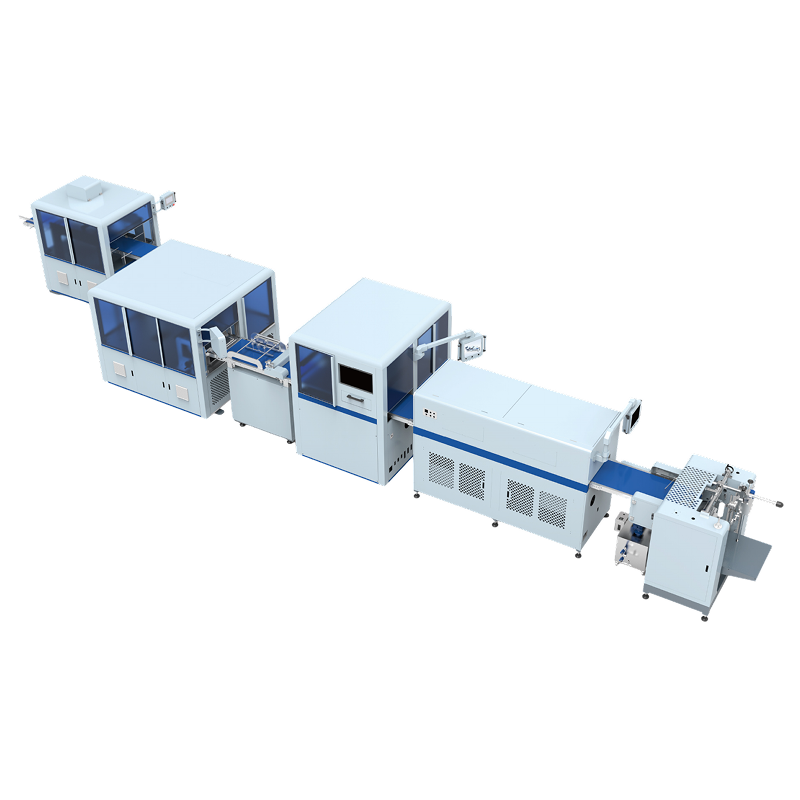

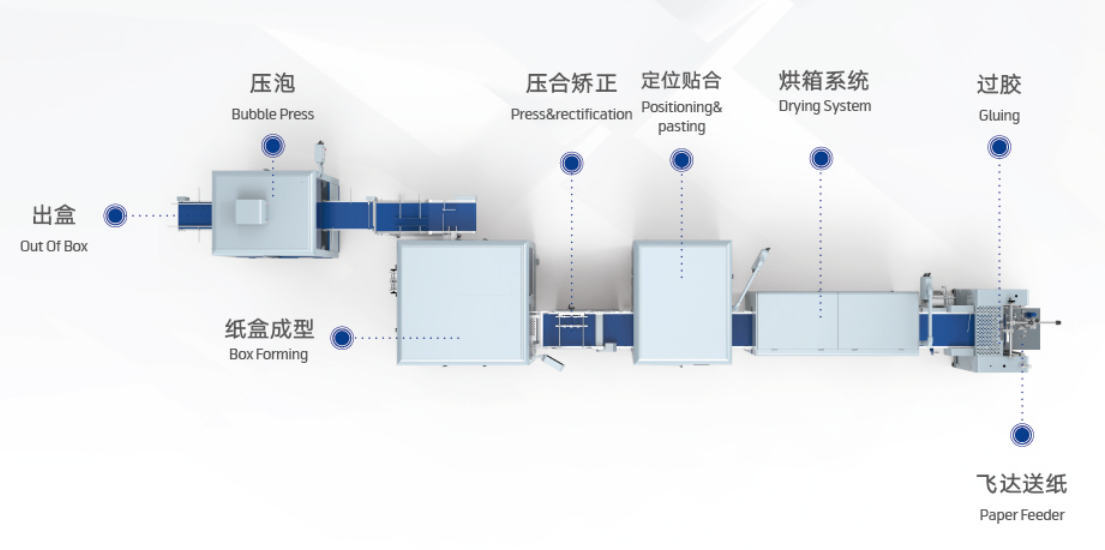

Production Workflow

1. Feed and glue the covering paper.

2. Dry the glued material before positioning.

3. Position and paste the board or shallow box component.

4. Press and correct the assembly before forming.

5. Form the base or inner box, complete bubble pressing and discharge the finished part.

Key Features and Buyer Benefits

Shallow-box specialization

The 30-80 mm height range is suited to bases and inner boxes rather than deep drawer-box components.

Automatic process flow

Paper feeding, gluing, drying, positioning, forming and bubble pressing are connected.

Defined case relationship

The page should show how the base or inner box fits the outer case, lid or book-style cover.

Published accuracy

The technical table states positioning accuracy of +/-0.15 mm.

Compact product range

The specified range helps filter enquiries that belong to CT200A or CT260 instead.

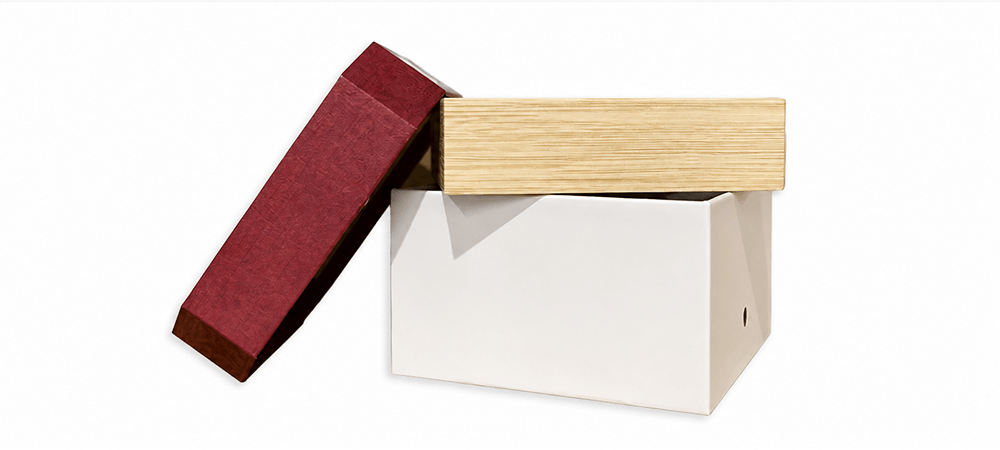

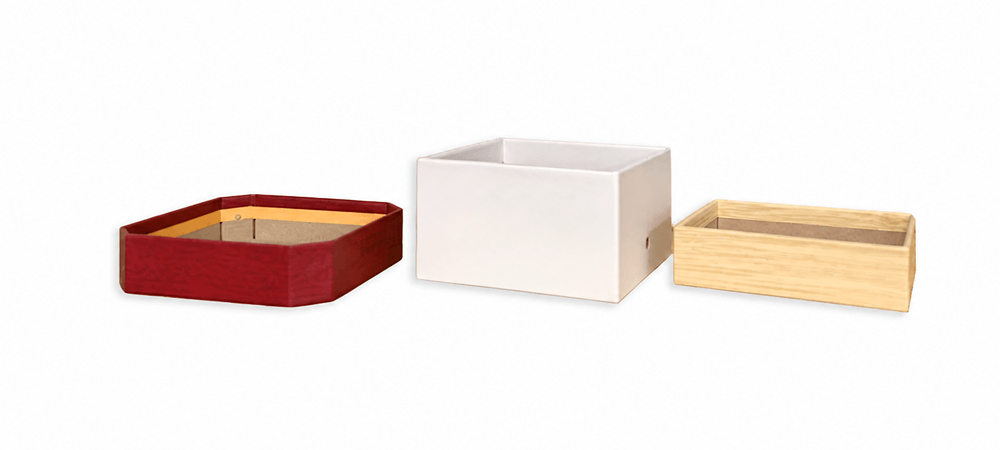

Suitable Applications

· Wine-box bases

· Book-style box inner trays

· Shallow rigid inner boxes

· Cosmetic and jewelry packaging inserts

· Electronic-product inner boxes within the size range

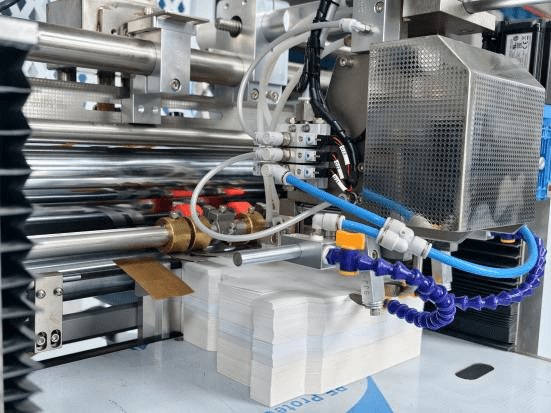

Feeder Part:

Servo-driven mechanical structure to ensure paper feeding stability and paper feeding speed.

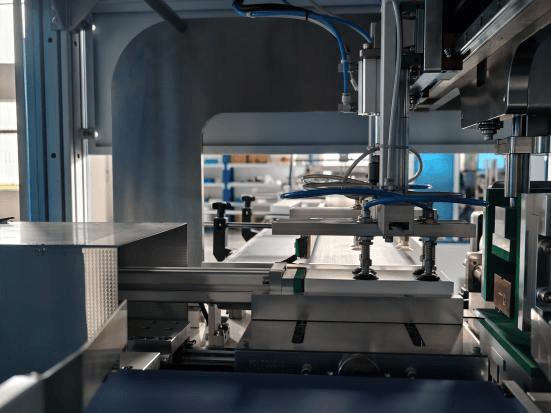

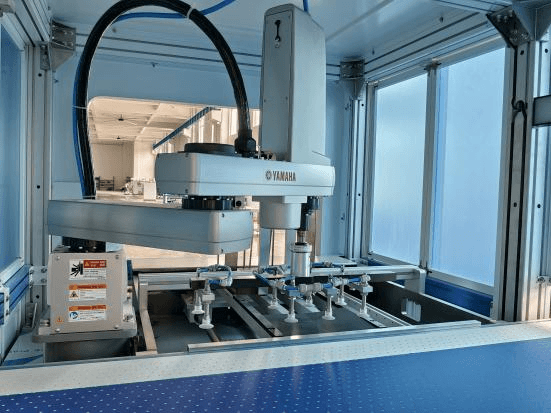

Positioning Unit:

Adopt 20 million pixel visual positioning and gantry manipulator grasping system, to ensure ±0.15mm positioning accuracy and 18-25 pcs/min speed.

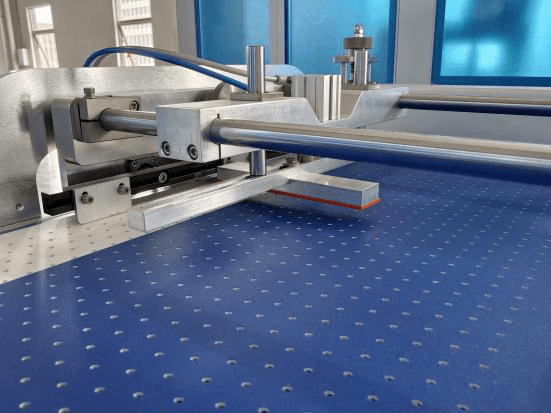

Correction Part:

Before the paper enters the forming part, adjust the position to ensure a firmer wrapping.

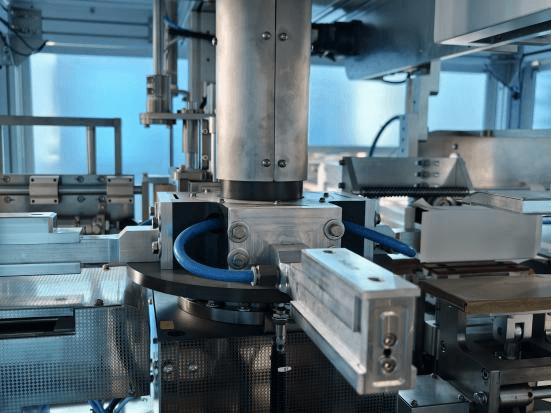

Servo Wrapping Part:

The box forming mechanism is upgraded to servo drive, which is faster, more stable and easier to adjust.

Bubble Press Part:

Grasping is more stable, adopt five side pressing and pushing form for box-out, so that the bubble pressing time is longer and the overall speed is faster.

Technical Specifications

Specification	JG-ZH200D
Maximum box size	160 x 140 x 80 mm
Minimum box size	95 x 95 x 30 mm
Board thickness	1.2-3.0 mm
Paper weight	120-275 g/m2
Production speed	18-25 pcs/min
Positioning accuracy	+/-0.15 mm
Total power	27 kW
Heating power	9 kW
Machine dimensions	13200 x 2900 x 2000 mm
Machine weight	6.2 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

How to Evaluate This Model

· Provide the outer case, base and inner-box dimensions together.

· Define the required fit, insertion clearance and orientation.

· Confirm whether the part is a wine-box base or a book-style inner box.

· Inspect wall squareness, surface flatness, bubbles and fit inside the final package.

Frequently Asked Questions

What is this machine designed to form?

It is identified as a wine-box base former and book-style inner-box forming machine.

What is the product height range?

The published minimum and maximum heights are 30 mm and 80 mm.

What is the production speed?

The current technical table states 18-25 pieces per minute.

Why is the current description unsuitable?

It repeats drawer-box applications and features instead of explaining wine-box bases and book-style inner boxes.

What sample set is required?

Provide the outer case, base or inner box, covering paper, board and the intended fit relationship.

Product Category

JG-ZH200D Automatic Wine Box Base and Book-Style Inner Box Forming Machine
