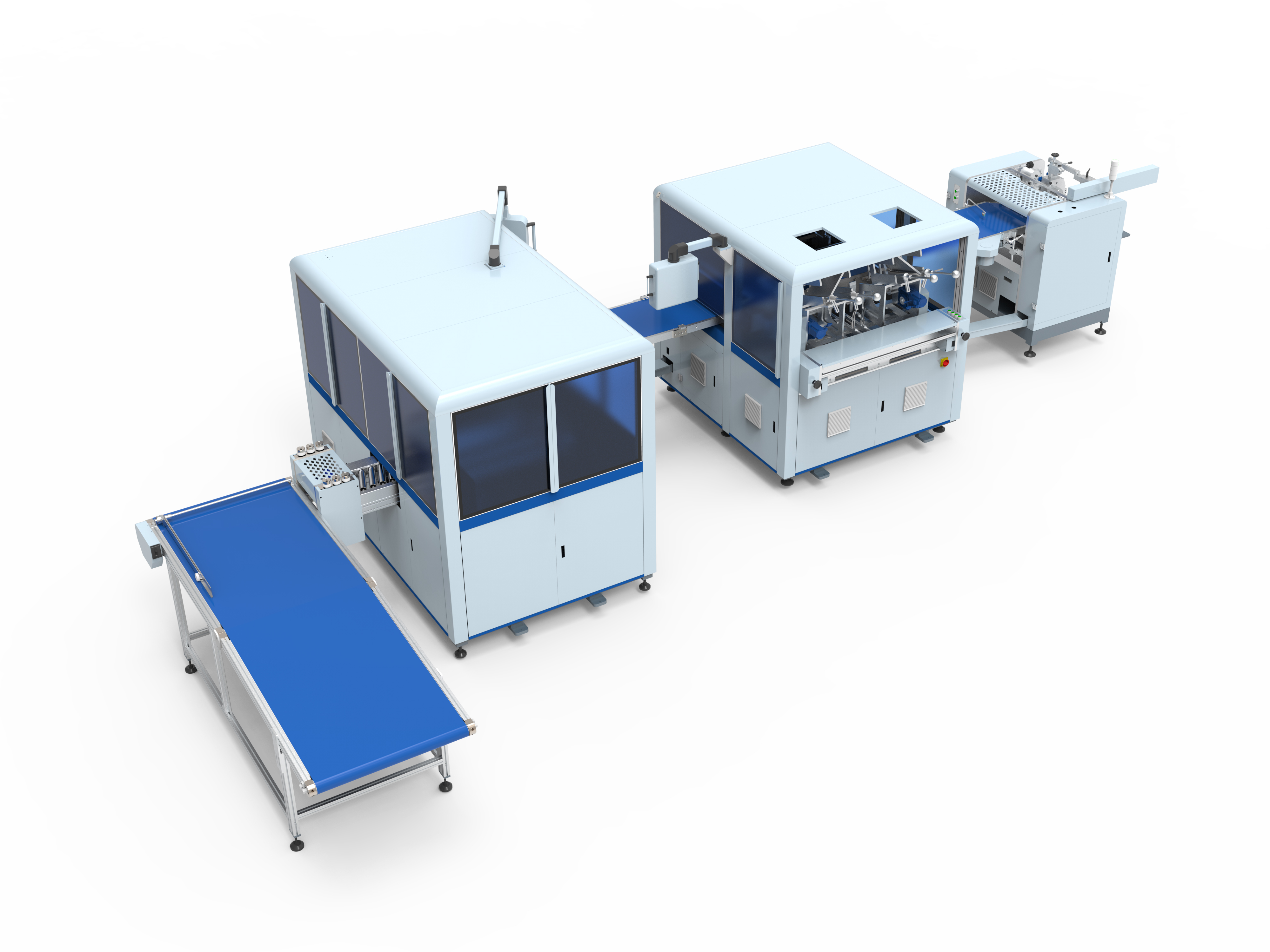

The JG-CY800 is a fully automated collapsible box wing forming machine, engineered for foldable box production with finished product dimensions up to 800×200mm. It automates the full process of paper feeding, gluing, board positioning, correction and wrapping. The machine adopts a 20-megapixel visual positioning system paired with a gantry robot gripping system, plus a dual independent cam feeding structure. Its integrated intelligent HMI displays real-time data for the entire production cycle.

High-Precision Positioning & Forming:

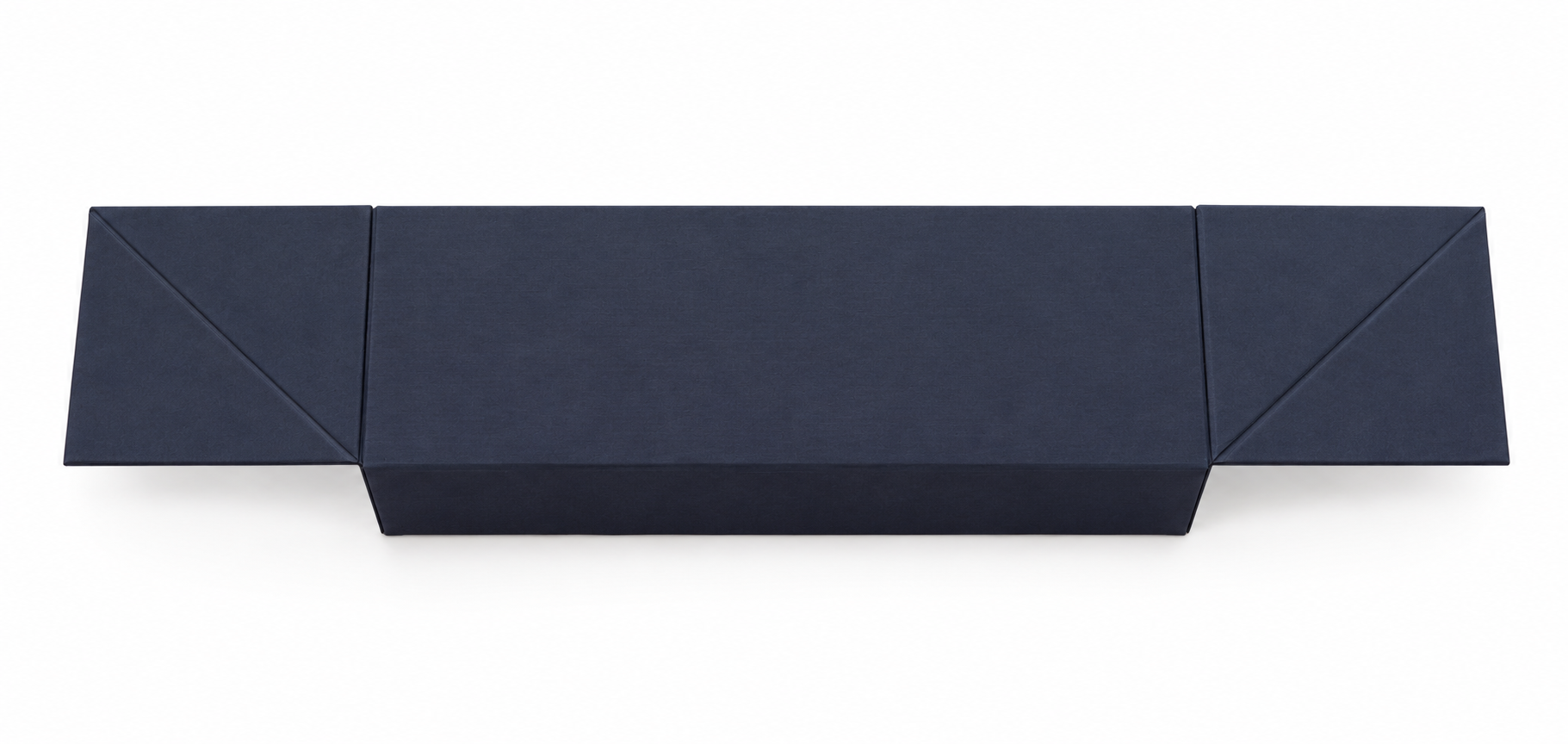

Equipped with a 20-megapixel vision positioning system and a gantry robotic gripping system, the machine delivers fast and precise positioning. The inner board of the side wing is accurately positioned to ensure three-edge alignment and tight edge wrapping. High dimensional accuracy keeps box shapes neat and consistent, effectively reducing defective products. Both thin and thick side-wings can be produced reliably.

Powerful Production Capacity:

With a production speed of up to 35 pcs/min, the machine perfectly matches the production rhythm of high-speed case making machines. The entire line runs seamlessly without bottlenecks, significantly improving overall packaging line productivity.

Efficient & Flexible Production:

Featuring dual independent cam-driven feeding units, the machine provides stable and high-speed feeding. Size adjustment is simple and convenient, while changeovers can be completed quickly, making the machine ideal for multi-product and multi-size order production.

Smart Visualized Control:

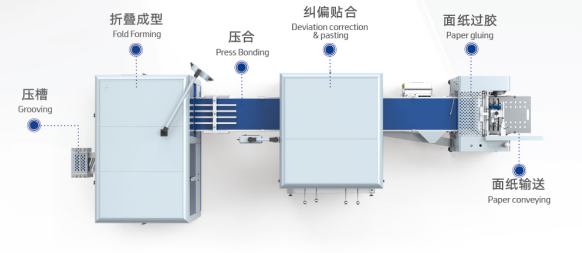

The machine is equipped with an intelligent HMI system, providing clear, real-time visualization of the entire process, including automatic paper feeding, gluing, positioning, correction, folding, and output. Production status is transparent and easy to monitor, while the intuitive interface makes operation simple and user-friendly, facilitating efficient workshop management.

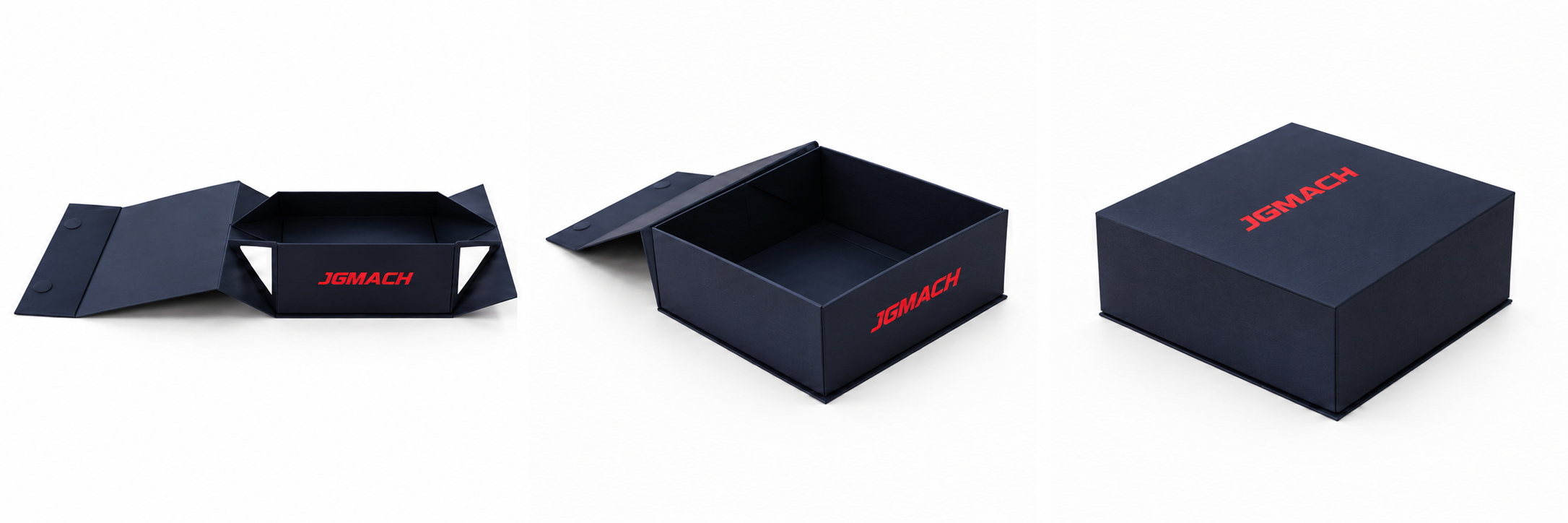

Compatible with Various Papers, Lower Storage & Logistics Costs:

Compatible with a wide range of papers. The finished products feature a foldable structure, significantly reducing storage space requirements and lowering finished-product storage and transportation costs..

Technical Specifications

Specification	JG-CY800
Max. Product Size	L800 x W200 mm
Min. Product size	L150 x W50 mm
Paper Thickness	120-275 g/m2
Middle Board Thickness	1.0-3.0 mm
Side Board Thickness	0.5-3.0 mm
Production Speed	Up to 35 pcs/min
Positioning Accuracy	+/-0.10 mm
Air Requirement	0.5 MPa; flow ≤ 0.6 m3/min
Total Power	25 kW
Machine Dimensions	9000 x 4200 x 2150 mm
Machine Weight	7.5 T

Actual production output can vary with product dimensions, materials, structure, process combination, adhesive behavior and operating conditions.

Frequently Asked Questions

What is the maximum finished-product size?

The published maximum is 800 x 200 mm.

How many board pieces can be positioned?

The technical table states five board pieces.

What is the positioning method?

The machine is with visual positioning.

What is the rated speed?

The speed is up to 35 pieces per minute, depending on product and operating conditions.

If want to make collapsible boxes, what machines are needed??

One to two collapsible box side-wing machines, one case making machine, and one assembly machine are required.

Product Category

JG-CY800 Automatic Collapsible Box Side-wing Forming Machine
