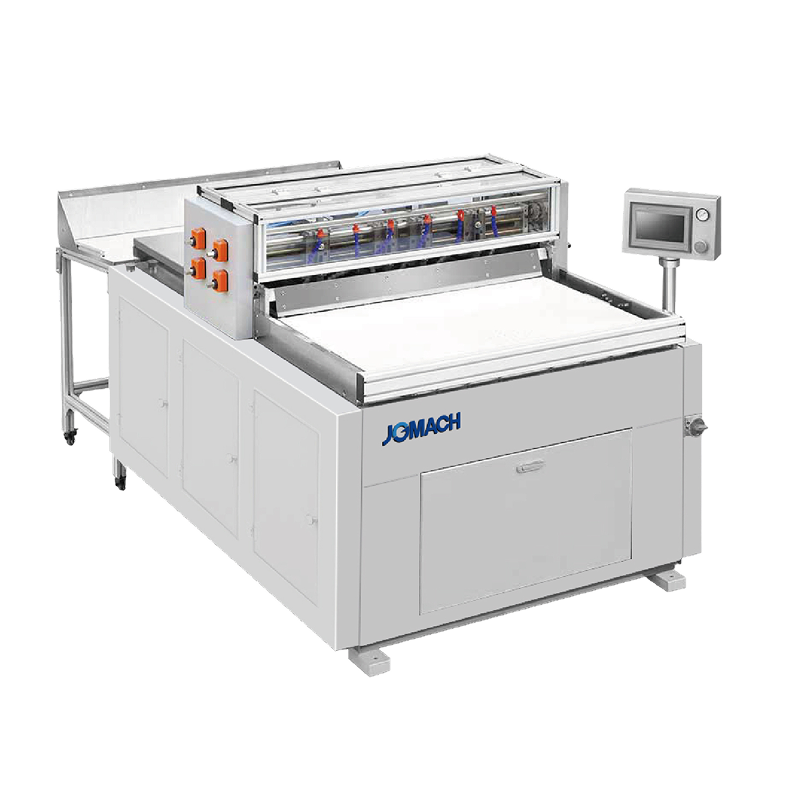

ZJ1000-12 Semi-Automatic Flatbed Grooving Machine

The ZJ1000-12 is a semi-automatic flatbed grooving machine for paperboard, cardboard, MDF and irregularly shaped board used in rigid boxes, hardcovers and luxury packaging. It supports a maximum board size of 650 x 1000 mm, a 12-groove configuration and a published speed of 15-25 pieces per minute. PLC control, servo drives and an included cutter grinder support setup and maintenance.

Production Workflow

1. Load the board according to the semi-automatic operating procedure.

2. Set the groove spacing and production parameters.

3. Feed and position the board for one or multiple groove cuts.

4. Groove paperboard, cardboard or MDF using the configured cutters.

5. Inspect the processed board before folding or conversion.

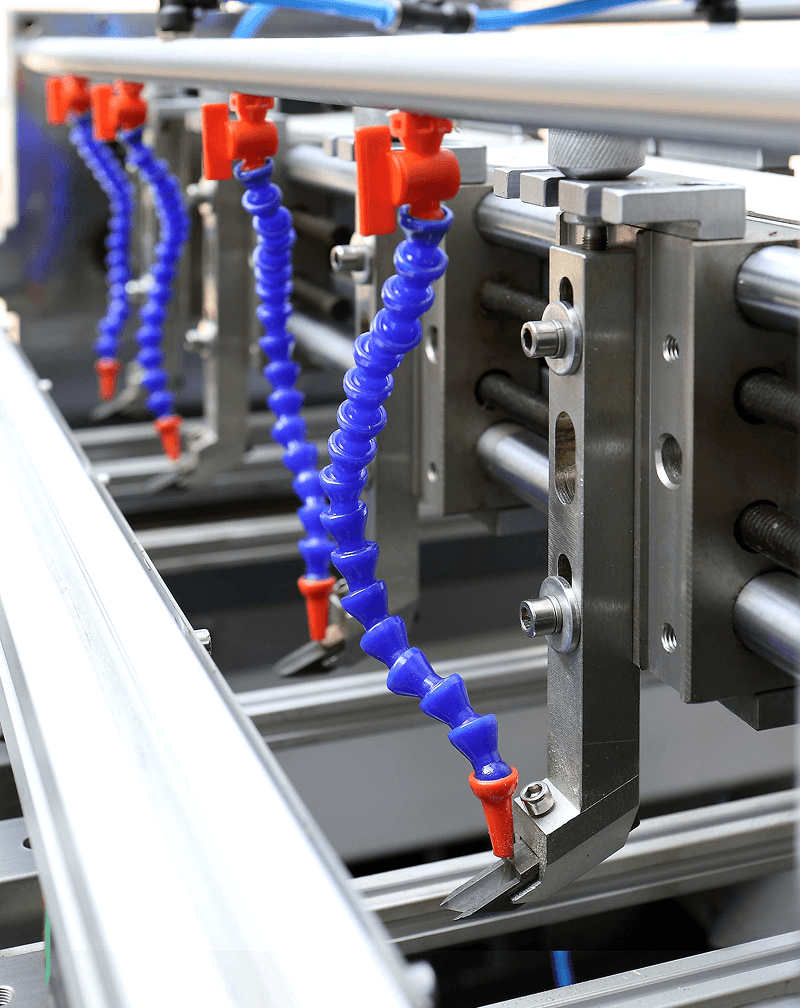

High Precision

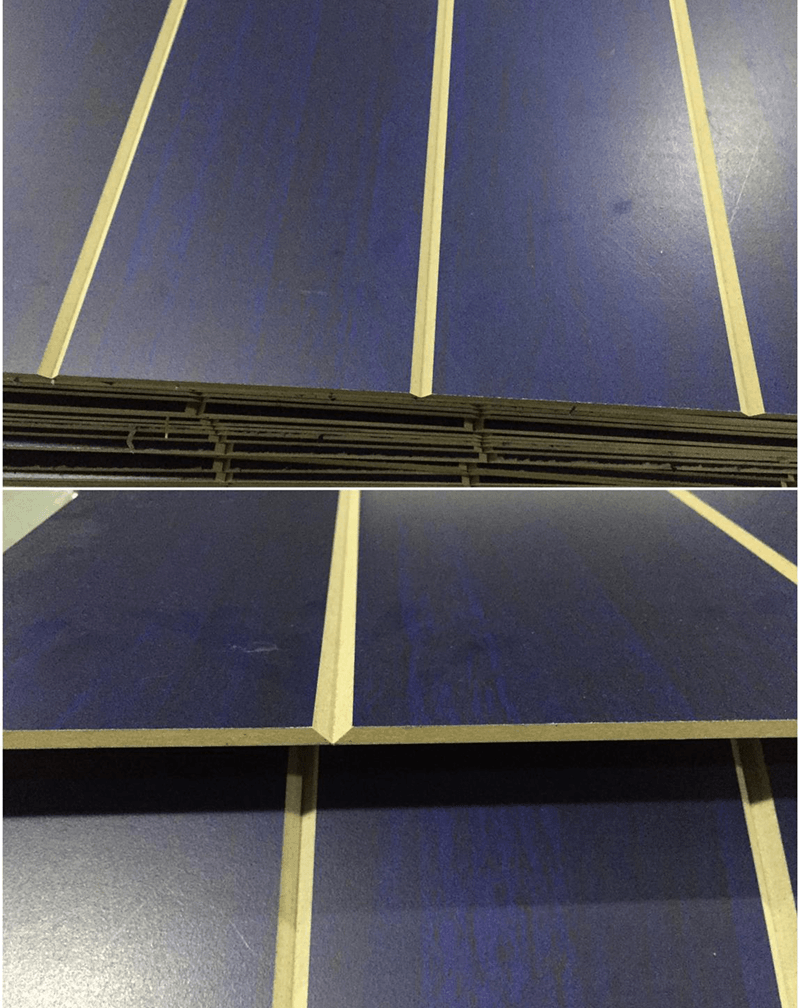

MDF GROOVING SAMPLE

Key Features and Buyer Benefits

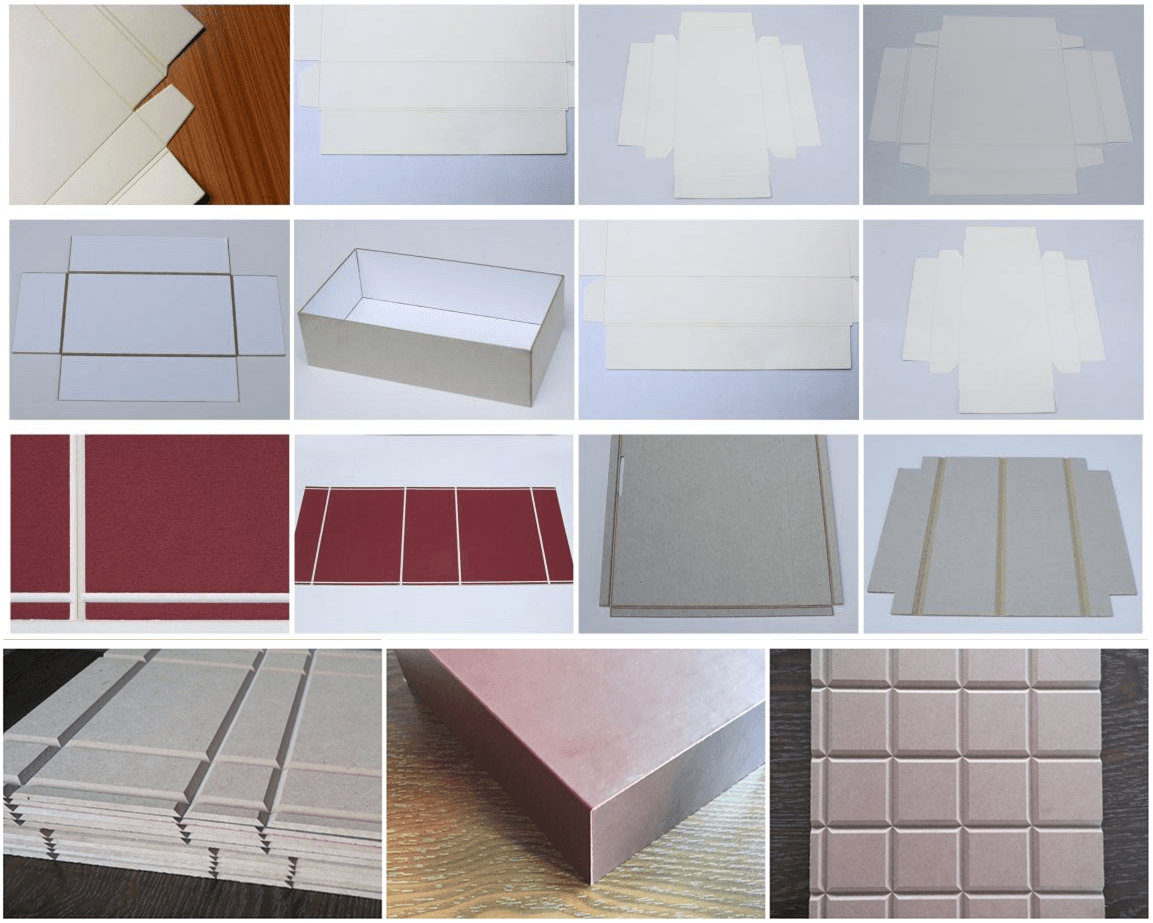

Which types of slots can be cut?

V-slot, L-slot, and U-slot.

Wide board capacity

The machine supports boards up to 650 x 1000 mm.

Irregular-board capability

The page identifies irregularly shaped board as a suitable application.

PLC and servo control

The control and drive system supports machine operation and positioning.

Twelve-groove configuration

Multiple grooves can be produced within the published spacing range.

Cutter grinder

A grinder is included to support cutter maintenance.

Suitable Applications

· Gift-box board grooving

· Hardcover board preparation

· Luxury packaging conversion

· Paperboard and cardboard grooving

· MDF and irregular-board grooving
